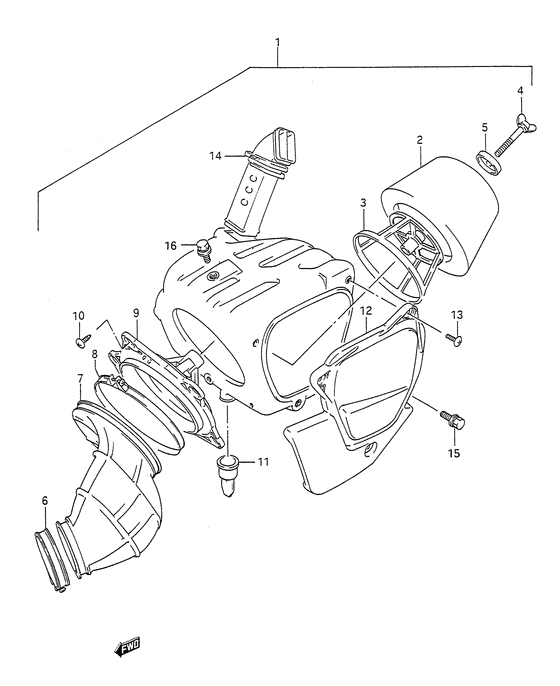

Air cleaner Diagram Suzuki TS200
- Year
- 1992
- Model code
- TS200RN(E28) N
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-08D02-000
Cleaner assy, air
Model m/n |
13700-08D02-000 |
— | ||
|
1
|
1
13700-08D03-000
Cleaner assy, air
Model p |
13700-08D03-000 |
— | ||
|
2
|
2
13780-03D00-000
FILTER,AIR
|
13780-03D00-000 |
— | ||
|
3
|
3
13791-03D00-000 HOLDER,FILTER |
13791-03D00-000 |
US $10.19 |
||
|
4
|
4
13831-03D00-000
Bolt, wing
|
13831-03D00-000 |
— | ||
| replacements | |||||
|
4
|
4
09119-06134-000 Bolt |
09119-06134-000 |
from US $4.13 |
||
|
4
|
4
09119-06062-000
Bolt, wing
|
09119-06062-000 |
— | ||
|
5
|
5
13792-13A01-000 WASHER,AIR CLEANERWasher |
13792-13A01-000 |
from US $1.92 |
||
|
6
|
6
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
6
|
6
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
7
|
7
13881-03D00-000
TUBE,OUTLET
|
13881-03D00-000 |
— | ||
|
8
|
8
13826-02B10-000 Clamp |
13826-02B10-000 |
US $5.58 |
||
| replacement | |||||
|
8
|
8
09402-00303-000 CLAMP |
09402-00303-000 |
from US $2.07 |
||
|
9
|
9
13790-02B10-000 BASE,FILTERModel m/n |
13790-02B10-000 |
from US $11.92 |
||
|
9
|
9
13790-03D00-000
BASE,FILTER
Model p |
13790-03D00-000 |
— | ||
|
10
|
10
03242-05124-000
Screw
|
03242-05124-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
13681-19B00-000
CAP,DRAIN
|
13681-19B00-000 |
— | ||
| replacement | |||||
|
11
|
11
13681-19B01-000 Cap,drain |
13681-19B01-000 |
from US $5.60 |
||
|
12
|
12
13740-03D00-000
Cap, air cleaner
Model m/n |
13740-03D00-000 |
— | ||
| replacement | |||||
|
12
|
12
13740-03D01-000 CAP,AIR CLEANERModel m/n |
13740-03D01-000 |
US $13.58 |
||
|
12
|
12
13740-03D01-000 CAP,AIR CLEANERModel p |
13740-03D01-000 |
US $13.58 |
||
|
13
|
13
02142-05104-000
Screw
|
02142-05104-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
14
|
14
13891-08D01-000
Tube, inlet
|
13891-08D01-000 |
— | ||
|
15
|
15
09138-06052-000
Bolt (6x12)
Bolt (6x12); Model m |
09138-06052-000 |
— | ||
| replacement | |||||
|
15
|
15
09138-06049-000 BOLT(6X12)Bolt (6x12); Model m |
09138-06049-000 |
US $1.12 |
||
|
15
|
15
01177-06128-000 BoltModel n/p |
01177-06128-000 |
US $2.61 |
||
| replacement | |||||
|
15
|
15
01580-06127-000 BoltModel n/p |
01580-06127-000 |
from US $4.49 |
||
