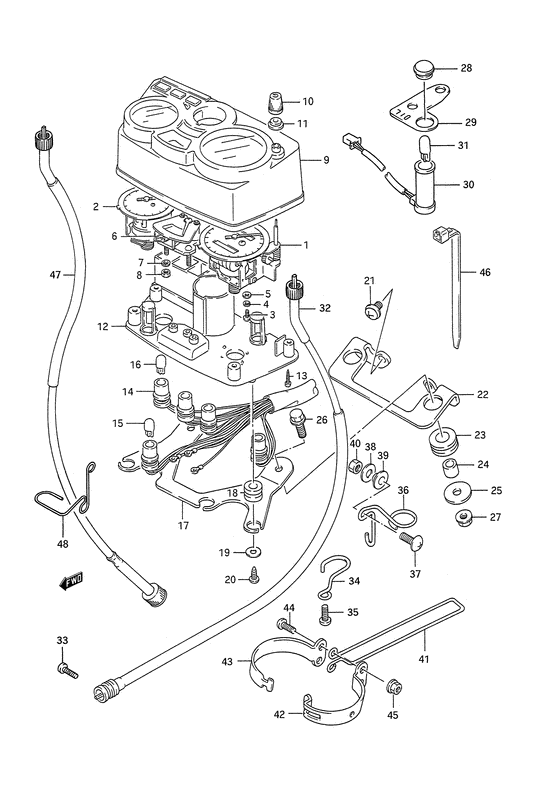

Speedometer Diagram Suzuki TS200
- Year
- 1992
- Model code
- TS200RN(E28) N
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34120-08D40-000
Speedometer (kilo)
Speedometer (kilo); |
34120-08D40-000 |
— | ||
|
2
|
2
34220-08D30-000
Tachometer
|
34220-08D30-000 |
— | ||
|
3
|
3
02112-03106-000
Screw
|
02112-03106-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0310A-000 SCREW |
02112-0310A-000 |
US $9.90 |
||
|
3
|
3
02112-0310B-000 SCREW |
02112-0310B-000 |
from US $3.71 |
||
|
4
|
4
08321-21036-000
Lock washer
|
08321-21036-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
5
|
5
08322-21036-000
Washer
|
08322-21036-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-0103B-000 WASHER |
08322-0103B-000 |
from US $3.86 |
||
|
6
|
6
34420-01A01-000
Gauge, water temperature
|
34420-01A01-000 |
— | ||
|
7
|
7
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
8
|
8
08310-22046-000
Nut
|
08310-22046-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0004A-000 NUT |
08310-0004A-000 |
from US $3.15 |
||
|
9
|
9
34150-08D50-000
Hood, meter
|
34150-08D50-000 |
— | ||
|
10
|
10
34124-49910-000 KNOB,TRIP METER |
34124-49910-000 |
from US $7.69 |
||
|
11
|
11
34996-49910-000 SEAL,TRIP KNOBSeal, thipknob Seal, trip knob; |
34996-49910-000 |
from US $2.83 |
||
|
12
|
12
34111-01A00-000 CASE,METER |
34111-01A00-000 |
US $51.52 |
||
|
13
|
13
36456-01A00-000
Screw
|
36456-01A00-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-03146-000 SCREW |
03511-03146-000 |
US $9.60 |
||
|
14
|
14
34170-08D50-000
Socket, meter
|
34170-08D50-000 |
— | ||
|
15
|
15
09471-12082-000 BULB(12V3.4W,T10,BF175-01450A)Bulb (12v,3.4w) Bulb (12v,3.4w); |
09471-12082-000 |
US $1.66 |
||
| replacement | |||||
|
15
|
15
09471-12028-000 BULB(12V3.4W,T10)Bulb (12v,3.4w); |
09471-12028-000 |
from US $1.98 |
||
|
16
|
16
09471-12077-000 BULB(12V1.7W,T10,WB121)Bulb (12v,1.7w); |
09471-12077-000 |
from US $1.52 |
||
|
17
|
17
34950-01A00-000
Bracket, meter
|
34950-01A00-000 |
— | ||
|
18
|
18
34955-28010-000 CUSHION |
34955-28010-000 |
from US $2.83 |
||
|
19
|
19
34181-03D10-000
Washer
|
34181-03D10-000 |
— | ||
| replacements | |||||
|
19
|
19
09160-05048-000 WASHER(5.5X14X1.2) |
09160-05048-000 |
from US $0.76 |
||
|
19
|
19
09160-05036-000
Washer 5.5x14x1
|
09160-05036-000 |
— | ||
|
20
|
20
03112-04125-000
Screw
|
03112-04125-000 |
— | ||
| replacement | |||||
|
20
|
20
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
21
|
21
02112-16125-000
Screw
|
02112-16125-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-1612B-000 SCREW |
02112-1612B-000 |
from US $4.13 |
||
|
22
|
22
34162-03D01-000
Bracket, speedometer
|
34162-03D01-000 |
— | ||
|
23
|
23
09320-11008-000 CUSHION |
09320-11008-000 |
from US $1.52 |
||
|
24
|
24
09180-06120-000 SPACER(6.5X11.5X12)Spacer (6.5x11.5x12); |
09180-06120-000 |
from US $1.07 |
||
|
25
|
25
09160-06072-000
Washer
|
09160-06072-000 |
— | ||
| replacement | |||||
|
25
|
25
09160-06501-000 WASHER(6.5X24X1.6) |
09160-06501-000 |
from US $0.96 |
||
|
26
|
26
01517-06254-000
Bolt
|
01517-06254-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
26
|
26
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
27
|
27
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
28
|
28
36361-04A00-000
Lens
Lens, pilot; |
36361-04A00-000 |
— | ||
|
29
|
29
36398-08D00-000
Bracket
|
36398-08D00-000 |
— | ||
|
30
|
30
36365-08D00-000
Socket
|
36365-08D00-000 |
— | ||
|
31
|
31
09471-12028-000 BULB(12V3.4W,T10)Bulb (12v,3.4w); |
09471-12028-000 |
from US $1.98 |
||
|
32
|
32
34910-03D11-000 CABLE ASSY,SPEEDOMETER |
34910-03D11-000 |
US $58.88 |
||
|
33
|
33
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
33
|
33
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
34
|
34
34938-03D10-000
Guide, cable
|
34938-03D10-000 |
— | ||
|
35
|
35
02112-05105-000
Screw 5x10
|
02112-05105-000 |
— | ||
| replacement | |||||
|
35
|
35
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
36
|
36
34938-03D20-000
Guide, cable no.2
Model m/n |
34938-03D20-000 |
— | ||
| replacement | |||||
|
36
|
36
34938-03D22-000 GUIDE,SPEEDOMETER CABLEGuide, meter cable no.1 Model m/n |
34938-03D22-000 |
from US $5.59 |
||
|
36
|
36
34938-03D21-000
Guide, cable no.2
Model p |
34938-03D21-000 |
— | ||
| replacement | |||||
|
36
|
36
34938-03D22-000 GUIDE,SPEEDOMETER CABLEGuide, meter cable no.1 Model p |
34938-03D22-000 |
from US $5.59 |
||
|
37
|
37
02142-06164-000
Screw
Model m/n |
02142-06164-000 |
— | ||
| replacement | |||||
|
37
|
37
02142-0616A-000 SCREWModel m/n |
02142-0616A-000 |
from US $0.76 |
||
|
37
|
37
02142-06167-000 SCREWScrew Screw; Model p |
02142-06167-000 |
from US $0.32 |
||
|
38
|
38
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
38
|
38
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.96 |
||
|
39
|
39
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
40
|
40
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
40
|
40
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
40
|
40
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
41
|
41
34938-03D30-000
Guide, cable no.3
Model m/n |
34938-03D30-000 |
— | ||
| replacement | |||||
|
41
|
41
34938-03D31-000
Guide, cable no.3
Model m/n |
34938-03D31-000 |
— | ||
|
41
|
41
34938-03D31-000
Guide, cable no.3
Model p |
34938-03D31-000 |
— | ||
|
42
|
42
34926-03D00-000
Bracket, guide
|
34926-03D00-000 |
— | ||
|
43
|
43
34927-03D01-000
Bracket, guide
|
34927-03D01-000 |
— | ||
|
44
|
44
02142-05164-000
Screw
Model m/n |
02142-05164-000 |
— | ||
| replacements | |||||
|
44
|
44
02142-0516B-000 SCREWModel m/n |
02142-0516B-000 |
from US $0.96 |
||
|
44
|
44
02142-0516A-000 SCREWScrew Model m/n |
02142-0516A-000 |
from US $0.76 |
||
|
44
|
44
02142-05167-000 SCREWScrew, air intk guide no.2 Model p |
02142-05167-000 |
from US $0.76 |
||
|
45
|
45
08316-16055-000
Nut
Model m/n |
08316-16055-000 |
— | ||
| replacement | |||||
|
45
|
45
08316-1005A-000 NUTModel m/n |
08316-1005A-000 |
from US $0.96 |
||
|
45
|
45
08316-16058-000
Nut
Model p |
08316-16058-000 |
— | ||
| replacement | |||||
|
45
|
45
08316-1005A-000 NUTModel p |
08316-1005A-000 |
from US $0.96 |
||
|
46
|
46
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $1.08 |
||
|
47
|
47
34940-03D01-000
Cable assy, tachometer
|
34940-03D01-000 |
— | ||
| replacement | |||||
|
47
|
47
34940-03D10-000 CABLE ASSY,TACHOMETER |
34940-03D10-000 |
US $82.80 |
||
|
48
|
48
34997-08D00-000
Guide, tachometer
|
34997-08D00-000 |
— | ||
