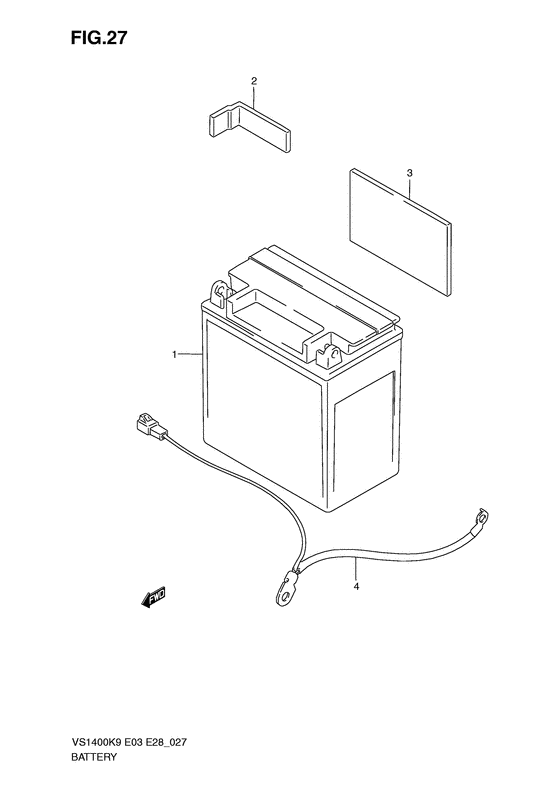

Battery Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-38B50-000
Battery assy (12v,14ah)
Battery assy (12v,14ah); Fth16-bs-1 |
33610-38B50-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-38B51-000
BATTERY ASSY(FTH16BS1,12V14AH)
Battery assy (12v,14ah); Fth16-bs-1 |
33610-38B51-000 |
— | ||
|
1
|
1
33610-38B52-000
Battery Assy
Battery assy (12v,14ah); Fth16-bs-1 |
33610-38B52-000 |
— | ||
|
1
|
1
33610-10F12-000 BATTERY ASSY(FTZ16-BS)Battery assy (12v,14ah); Fth16-bs-1 |
33610-10F12-000 |
from US $196 |
||
|
2
|
2
33652-38A10-000 PROTECTOR(20X90X2)Protector (20x90x2) Protector (20x90x2); |
33652-38A10-000 |
US $8.14 |
||
| replacement | |||||
|
2
|
2
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) Protector (20x90x2); |
33652-07D00-000 |
from US $2.56 |
||
|
3
|
3
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Protector (170x95x3.0); Cut as required profile, (130x60x3) |
33651-37000-000 |
from US $4.41 |
||
|
4
|
4
33860-38B00-000 WIRE,BATTERY MINUS LEADWire, battery (-)lead; |
33860-38B00-000 |
from US $22.63 |
||
