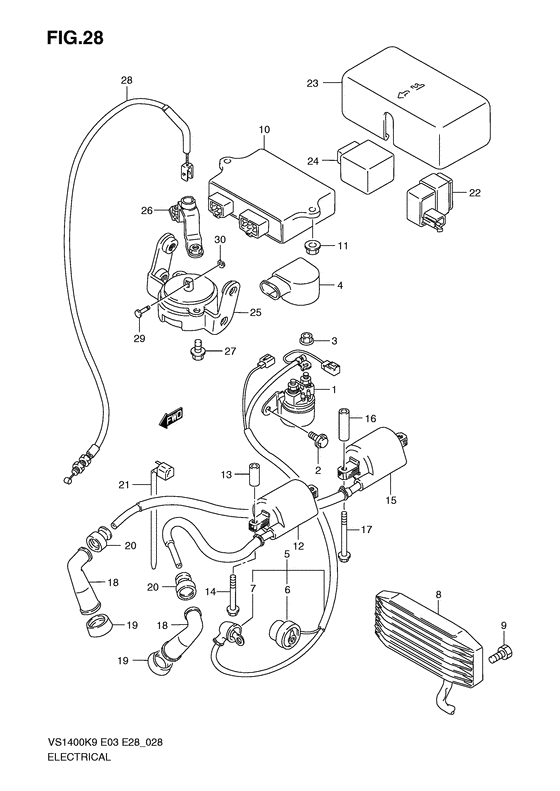

Electrical Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-49100-000 RELAY ASSY,STARTING MOTORRelay, starting motor Relay, starting motor; |
31800-49100-000 |
from US $85.36 |
||
|
2
|
2
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
3
|
3
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.80 |
||
|
4
|
4
33624-49401-000 CAP,STARTER RELAY TERMINALCap, starter relay Cap, starter relay; |
33624-49401-000 |
from US $3.39 |
||
|
5
|
5
33810-38B00-000
WIRE,STARTER MOTOR LEAD
|
33810-38B00-000 |
— | ||
|
6
|
6
36618-43410-000 CAP,OIL PRESSURE SWITCHCap, oil pressure; |
36618-43410-000 |
from US $1.82 |
||
|
7
|
7
31861-48B10-000 CAP,STARTER MOTOR LEADCap, starter motor Cap, starter motor; |
31861-48B10-000 |
from US $4.40 |
||
|
8
|
8
32800-12E01-000 Rectifier AssyRectifier, regulator Rectifier, regulator; |
32800-12E01-000 |
from US $367.71 |
||
|
9
|
9
01500-0610B-000 BoltBolt |
01500-0610B-000 |
from US $0.80 |
||
|
10
|
10
32900-38B50-000 IGNITOR ASSY |
32900-38B50-000 |
from US $1,746.46 |
||
|
11
|
11
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
33410-38B00-000
COIL ASSY,IGNITION RR
|
33410-38B00-000 |
— | ||
| replacement | |||||
|
12
|
12
33410-38B01-000 Coil Assy,ignition Rr |
33410-38B01-000 |
from US $145.30 |
||
|
13
|
13
09180-06178-000 SPACER(6.4X10X22)Spacer, ign coil Spacer (6.4x10x22); |
09180-06178-000 |
from US $1.22 |
||
|
14
|
14
01570-0545B-000 BoltBolt, ig rear; |
01570-0545B-000 |
from US $0.91 |
||
|
15
|
15
33420-38B00-000
COIL ASSY,IGNITION
|
33420-38B00-000 |
— | ||
| replacement | |||||
|
15
|
15
33420-38B01-000 Coil Assy,ignition |
33420-38B01-000 |
from US $135.07 |
||
|
16
|
16
09180-06179-000 SPACER(6.4X10X32)Spacer (6.4x10x32) Spacer (6.4x10x32); |
09180-06179-000 |
from US $1.22 |
||
|
17
|
17
01570-0555B-000 BoltBolt, ig front; |
01570-0555B-000 |
US $17.30 |
||
|
18
|
18
33510-38B00-000 Cap,spark plugCap assy, spark plug Cap, spark plug; |
33510-38B00-000 |
from US $28 |
||
|
19
|
19
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-47D00-000 |
from US $4.26 |
||
|
20
|
20
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
21
|
21
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp, high tension cord; |
09407-14403-000 |
from US $1.08 |
||
|
22
|
22
33950-38B00-000 RELAY ASSY,FUEL CUTRelay assy, fuel cut Relay, fuel cut; |
33950-38B00-000 |
from US $60.72 |
||
|
23
|
23
33951-38B00-000 COVER,RELAY |
33951-38B00-000 |
from US $14.83 |
||
|
24
|
24
32910-24B10-000 CONTROL UNIT,DECOMP |
32910-24B10-000 |
from US $98.80 |
||
|
25
|
25
33970-38B00-000 SOLENOID ASSY,DECOMPSolenoid assy, decomp |
33970-38B00-000 |
from US $323.84 |
||
|
26
|
26
33971-38B00-000
BRACKET,DECOMP SOLENOID
|
33971-38B00-000 |
— | ||
|
27
|
27
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
28
|
28
58900-38B20-000 CABLE ASSY,DECOMP FR |
58900-38B20-000 |
from US $64 |
||
|
29
|
29
09209-04020-000 PIN(4X12.5) |
09209-04020-000 |
from US $5.37 |
||
|
30
|
30
08332-1103A-000 E RING |
08332-1103A-000 |
from US $2.94 |
||
