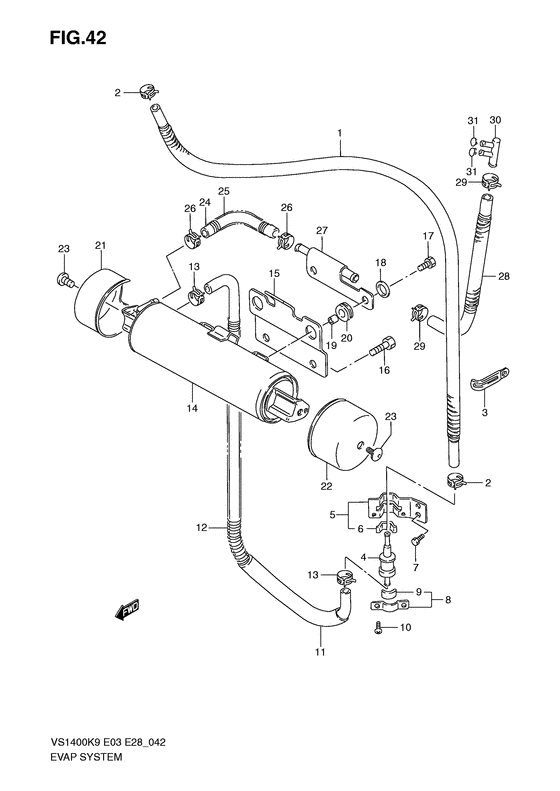

Evap system (E33) Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44460-38BA0-000
Hose, fuel tank joint
|
44460-38BA0-000 |
— | ||
|
2
|
2
09401-11413-000 CLIPClip; |
09401-11413-000 |
from US $0.88 |
||
|
3
|
3
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
| replacements | |||||
|
3
|
3
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
3
|
3
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
3
|
3
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
4
|
4
44240-38A00-000 VALVE,FUEL TANK BREATHERValve, roll cover Valve, fuel tank breather; |
44240-38A00-000 |
from US $20.80 |
||
|
5
|
5
44890-38B01-000
Bracket, breather valve
|
44890-38B01-000 |
— | ||
|
6
|
6
44894-24A00-000 CUSHION |
44894-24A00-000 |
from US $0.92 |
||
|
7
|
7
01500-0510B-000 Bolt |
01500-0510B-000 |
from US $0.80 |
||
|
8
|
8
44892-24A00-000 PLATE,FUEL TANK BREATHER NO.2Plate, breather valve Plate, breather valve; |
44892-24A00-000 |
from US $2.13 |
||
|
9
|
9
44894-24A00-000 CUSHION |
44894-24A00-000 |
from US $0.92 |
||
|
10
|
10
02142-0410B-000 SCREW |
02142-0410B-000 |
from US $1.65 |
||
|
11
|
11
44450-38BA0-000
Hose, valve/canister joint
|
44450-38BA0-000 |
— | ||
|
12
|
12
09440-14026-000 SPRING |
09440-14026-000 |
from US $14.47 |
||
|
13
|
13
09401-11413-000 CLIPClip; |
09401-11413-000 |
from US $0.88 |
||
|
14
|
14
17210-38B10-000
CANISTER ASSY,CHARCORL
|
17210-38B10-000 |
— | ||
|
15
|
15
44870-38B00-000
Plate, canister fitting
|
44870-38B00-000 |
— | ||
|
16
|
16
01580-0816B-000 Bolt |
01580-0816B-000 |
US $18 |
||
|
17
|
17
01580-0616B-000 BoltBolt, bracket Bolt, canister; |
01580-0616B-000 |
US $15.50 |
||
|
18
|
18
09160-06054-000 WASHER(6.5X22X1.6)Washer (6.5x22x1.6) |
09160-06054-000 |
from US $1.22 |
||
|
19
|
19
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) Spacer; |
09180-06038-000 |
from US $0.61 |
||
|
20
|
20
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
20
|
20
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
21
|
21
44991-38B01-000 COVER,CANISTER |
44991-38B01-000 |
from US $20.06 |
||
|
22
|
22
44991-38B10-000
COVER,CANISTER
|
44991-38B10-000 |
— | ||
|
23
|
23
09139-06078-000 SCREW(6X10)Screw (6x10) Screw; |
09139-06078-000 |
from US $3.80 |
||
|
24
|
24
44445-38BA0-000
HOSE,CSTR PIPE JOINT
|
44445-38BA0-000 |
— | ||
|
25
|
25
09440-14025-000
SPRING
|
09440-14025-000 |
— | ||
|
26
|
26
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
27
|
27
44940-38B00-000
PIPE,CANISTER
|
44940-38B00-000 |
— | ||
|
28
|
28
44440-38BA0-000
HOSE,PIPE JOINT
|
44440-38BA0-000 |
— | ||
|
29
|
29
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
09367-06004-000 SEPARATORNipple Separator, valve; |
09367-06004-000 |
US $43.10 |
||
|
31
|
31
09401-08401-000 CLIPClip, fuel hose Clip; |
09401-08401-000 |
from US $0.96 |
||
