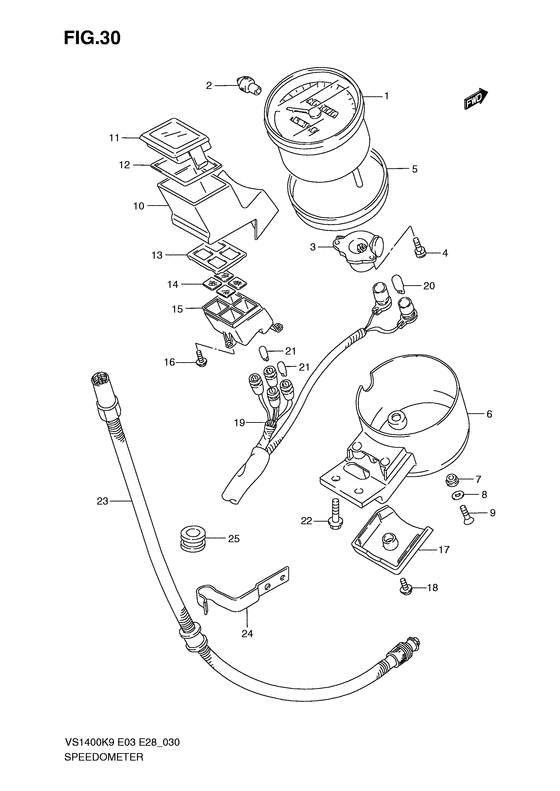

Speedometer Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34110-38BB1-000
SPEEDOMETER(MILE/KILO)
Speedometer (mile/kilo); |
34110-38BB1-000 |
— | ||
|
1
|
1
34110-38B60-000 SPEEDOMETER(KILO)Speedometer (kilo); E28 |
34110-38B60-000 |
US $379.04 |
||
|
2
|
2
34124-39A10-000 KNOB,TRIPKnob, trip |
34124-39A10-000 |
from US $12.64 |
||
|
3
|
3
34131-19B00-000 BOX,GEARBox, meter gear |
34131-19B00-000 |
from US $93.84 |
||
|
4
|
4
02112-3410A-000 SCREW |
02112-3410A-000 |
from US $2.99 |
||
|
5
|
5
34288-39A00-000 CUSHIONCushion, meter |
34288-39A00-000 |
from US $12.77 |
||
|
6
|
6
34193-38B00-000 COVER,METERCover, meter |
34193-38B00-000 |
from US $199.17 |
||
|
7
|
7
34189-05A30-000
CUSHION,METER
|
34189-05A30-000 |
— | ||
| replacement | |||||
|
7
|
7
34189-05A31-000 Cushion |
34189-05A31-000 |
from US $3.42 |
||
|
8
|
8
34181-38A00-000 WASHER |
34181-38A00-000 |
from US $2.17 |
||
|
9
|
9
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.41 |
||
|
10
|
10
36381-39A20-000 BOX,PILOTBox, pilot lamp |
36381-39A20-000 |
from US $67.71 |
||
|
11
|
11
36393-38B60-000 LENS,PILOT BOX |
36393-38B60-000 |
from US $10.05 |
||
|
12
|
12
36395-38A00-000 CUSHION |
36395-38A00-000 |
from US $4.60 |
||
|
13
|
13
36386-38A00-000 PLATE,PILOT LENSPlate, pilot lens |
36386-38A00-000 |
from US $4.12 |
||
|
14
|
14
36300-38870-000 LENS SET,PILOT LAMP |
36300-38870-000 |
from US $11.19 |
||
|
15
|
15
36382-38B30-000 CASE,PILOT LAMPCase, pilot lamp |
36382-38B30-000 |
from US $13.58 |
||
|
16
|
16
02112-73083-000 SCREW |
02112-73083-000 |
US $11.80 |
||
|
17
|
17
34152-38B31-000
COVER,PILOT BOX
|
34152-38B31-000 |
— | ||
|
18
|
18
02112-74083-000
Screw
|
02112-74083-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-7408B-000 SCREW |
02112-7408B-000 |
from US $0.91 |
||
|
19
|
19
34173-38BA0-000
SOCKET,METER
|
34173-38BA0-000 |
— | ||
|
20
|
20
09471-12028-000 BULB(12V3.4W,T10)Bulb (12v,3.4w); |
09471-12028-000 |
from US $1.98 |
||
|
21
|
21
09471-12108-000 BULB(12V1.7W,T6.5)Bulb (t6.5,1.7w) Bulb (12v,1.7); |
09471-12108-000 |
from US $2.13 |
||
|
22
|
22
02162-0616B-000 SCREWBolt, adjust Screw; |
02162-0616B-000 |
from US $0.96 |
||
|
23
|
23
34910-38B11-000
CABLE ASSY,SPEEDOMETER
|
34910-38B11-000 |
— | ||
| replacement | |||||
|
23
|
23
34910-38B12-000 Cable Assy,speedometer |
34910-38B12-000 |
from US $85.74 |
||
|
24
|
24
34938-38A02-000 GUIDE,SPEEDOMETER CABLEGuide, meter cable |
34938-38A02-000 |
from US $10.88 |
||
|
25
|
25
09308-13005-000
GROMMET
|
09308-13005-000 |
— | ||
| replacement | |||||
|
25
|
25
09308-13006-000 Grommet |
09308-13006-000 |
from US $5.20 |
||
