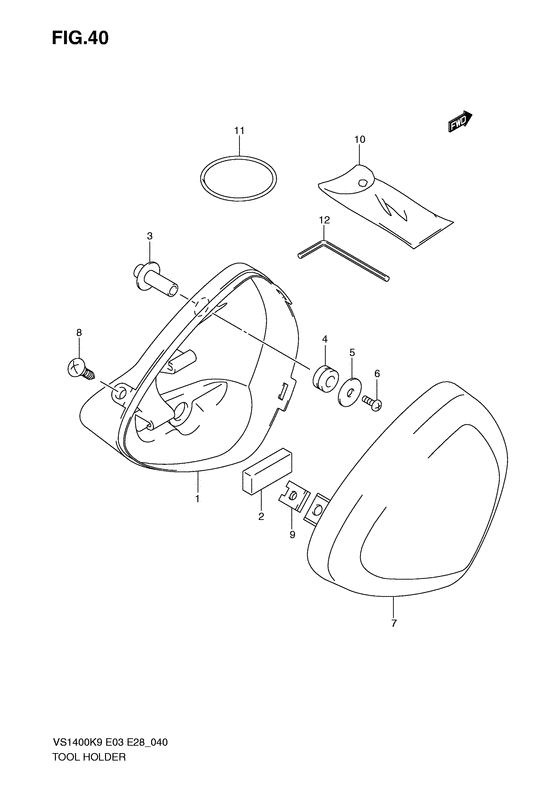

Tool holder Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47431-39A00-000
Body, tool holder
E3,e28 |
47431-39A00-000 |
— | ||
| replacement | |||||
|
1
|
1
47431-39A10-000 BODY,TOOL HOLDERE3,e28 |
47431-39A10-000 |
from US $42.69 |
||
|
1
|
1
47431-39A10-000 BODY,TOOL HOLDERE33 |
47431-39A10-000 |
from US $42.69 |
||
|
2
|
2
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) |
33652-31F00-000 |
from US $1.95 |
||
|
3
|
3
47440-39A01-000 SPACER,TOOL HOLDER |
47440-39A01-000 |
from US $5.15 |
||
|
4
|
4
09320-10052-000 CUSHIONCushion, rear |
09320-10052-000 |
US $3.62 |
||
| replacement | |||||
|
4
|
4
09320-10079-000 Cushion |
09320-10079-000 |
from US $5.78 |
||
|
5
|
5
09160-06158-000 WASHER(6.5X22X1.6) |
09160-06158-000 |
from US $3.15 |
||
|
6
|
6
02142-0645B-000 SCREW |
02142-0645B-000 |
from US $4.28 |
||
|
7
|
7
47432-39A00-000 CAP,TOOL HOLDER |
47432-39A00-000 |
US $99.74 |
||
|
8
|
8
09139-06044-000 SCREW(6X23)Screw, cap; |
09139-06044-000 |
from US $7.36 |
||
|
9
|
9
09148-06018-000 NUTNut, buckrest rear cover |
09148-06018-000 |
from US $1.52 |
||
|
10
|
10
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
10
|
10
09800-21102-000 Tool Assy |
09800-21102-000 |
from US $27.27 |
||
|
11
|
11
09280-61002-000
O RING(D:3.5,ID:61)
Band, tool; |
09280-61002-000 |
— | ||
| replacement | |||||
|
11
|
11
09280-61004-000 O Ring(D:3.5,id:61)Band, tool; |
09280-61004-000 |
from US $4.11 |
||
|
12
|
12
09816-00059-000 HEXAGON SPANNER,5Hexagon, 5 Spanner, hexagon 5; |
09816-00059-000 |
from US $3.68 |
||
