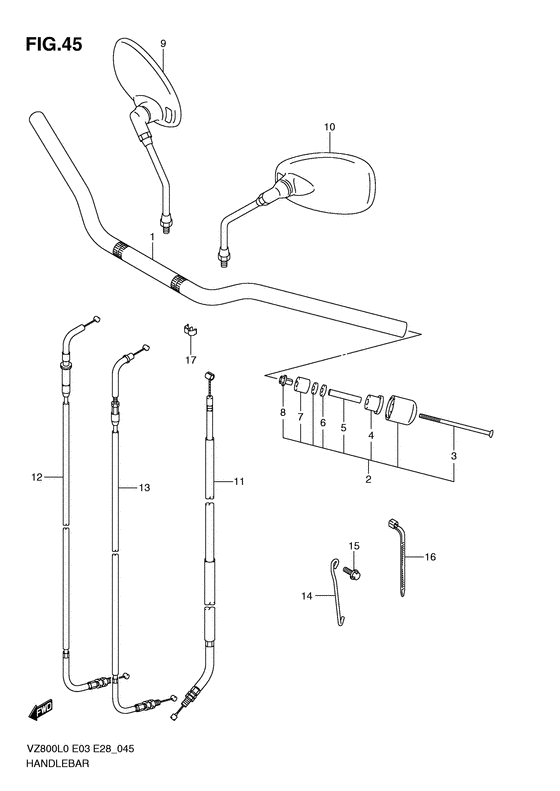

Handlebar Diagram Suzuki VZ800 Boulevard M50
- Year
- 2010
- Model code
- VZ800L0(E3/E28) L0
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VZ800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-39G20-000 HANDLEBAR |
56111-39G20-000 |
from US $345.17 |
||
|
2
|
2
56200-10891-000
Balancer set, handlebar
|
56200-10891-000 |
— | ||
| replacement | |||||
|
2
|
2
56200-10892-000 BALANCER SET,HANDLEBAR |
56200-10892-000 |
from US $34.32 |
||
|
3
|
3
09127-06017-000 SCREW(6X127)Screw |
09127-06017-000 |
from US $1.76 |
||
|
4
|
4
56272-26D01-000 EXPANDER,HANDLE BALANCER NO.2Expander, outer; |
56272-26D01-000 |
from US $4.10 |
||
|
5
|
5
56276-17D00-000 SPACER,EXPANDER |
56276-17D00-000 |
from US $1.82 |
||
|
6
|
6
09160-06131-000 WASHER(6.5X16X4)Washer; |
09160-06131-000 |
from US $0.76 |
||
|
7
|
7
56272-10G10-000 EXPANDER,HANDLE BALANCER |
56272-10G10-000 |
from US $1.98 |
||
|
8
|
8
56273-10G10-000 NUT,HANDLE BALANCER |
56273-10G10-000 |
from US $4.10 |
||
|
9
|
9
56500-41F60-000 MIRROR ASSY,RR VIEW,R |
56500-41F60-000 |
from US $129.54 |
||
|
10
|
10
56600-41F60-000 MIRROR ASSY,RR VIEW,L |
56600-41F60-000 |
from US $129.54 |
||
|
11
|
11
58200-39G30-000 CABLE ASSY,CLUTCH |
58200-39G30-000 |
from US $46.37 |
||
|
12
|
12
58300-39G60-000
Cable assy, throttle no.1
|
58300-39G60-000 |
— | ||
| replacement | |||||
|
12
|
12
58300-39G61-000 Cable assy, throttle no.1 |
58300-39G61-000 |
from US $31.46 |
||
|
13
|
13
58300-39G70-000 Cable assy, throttle no.2 |
58300-39G70-000 |
from US $28.89 |
||
|
14
|
14
58626-39G20-000 GUIDE,THROTTLE CABLE |
58626-39G20-000 |
US $14.96 |
||
|
15
|
15
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
09407-19401-000 CLAMP(L:190)Clamp (l:190); |
09407-19401-000 |
from US $4.17 |
||
|
16
|
16
09407-30401-000 CLAMP(L:300)Clamp (l:300); |
09407-30401-000 |
from US $7.79 |
||
|
17
|
17
09408-00244-000 CLIP |
09408-00244-000 |
from US $1.76 |
||
