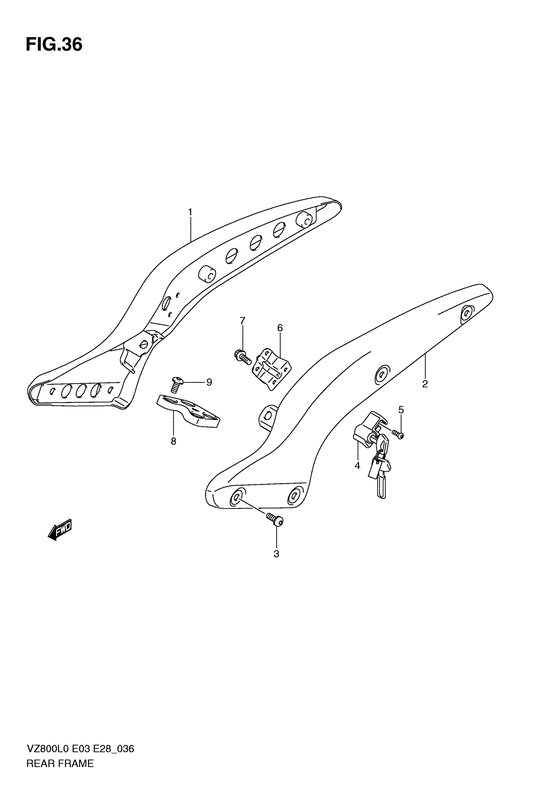

Rear frame Diagram Suzuki VZ800 Boulevard M50
- Year
- 2010
- Model code
- VZ800L0(E3/E28) L0
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VZ800
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41210-39G50-000 FRAME,RR,R |
41210-39G50-000 |
from US $331.20 |
||
|
2
|
2
41220-39G50-000 FRAME,RR,L |
41220-39G50-000 |
from US $331.20 |
||
|
3
|
3
09139-10003-000 BOLT(10X25) |
09139-10003-000 |
from US $2.58 |
||
|
4
|
4
95700-41821-000 LOCK SET,HELMETLock set, helmet; |
95700-41821-000 |
from US $76.91 |
||
|
5
|
5
09139-06089-000 SCREW(6X14) |
09139-06089-000 |
from US $0.96 |
||
|
6
|
6
95710-39G00-000 BRACKET,HELMET LOCK |
95710-39G00-000 |
from US $6.18 |
||
|
7
|
7
07120-0616A-000 Bolt |
07120-0616A-000 |
from US $0.97 |
||
|
8
|
8
41313-41F60-000
Plate,fuel tank rear
|
41313-41F60-000 |
— | ||
| replacement | |||||
|
8
|
8
41313-41F61-000 PLATE,FUEL TANK REAR |
41313-41F61-000 |
US $11.92 |
||
|
9
|
9
09106-08140-000 BOLT(8X16)Plug, oil gallery |
09106-08140-000 |
from US $2.43 |
||
