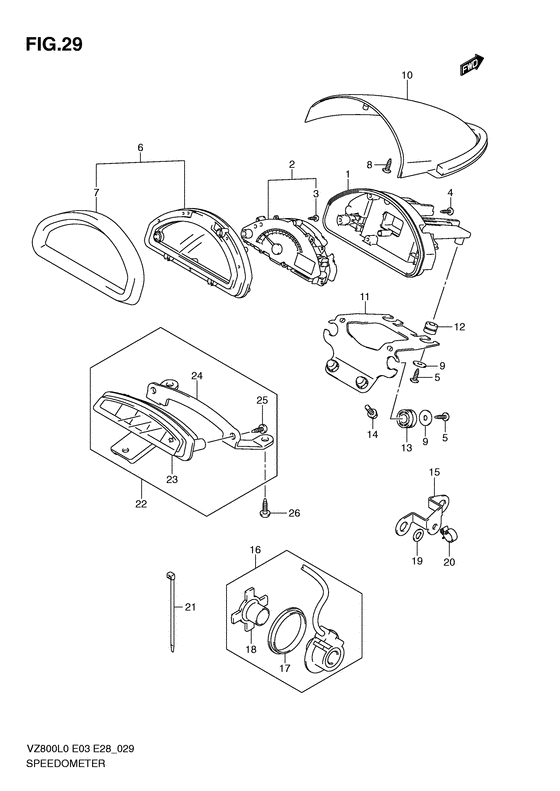

Speedometer Diagram Suzuki VZ800 Boulevard M50
- Year
- 2010
- Model code
- VZ800L0(E3/E28) L0
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VZ800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34111-40H00-000 LWR CASELower case; |
34111-40H00-000 |
from US $72.50 |
||
|
2
|
2
34120-39GD0-000 SpeedometerE3/e33 |
34120-39GD0-000 |
US $713.32 |
||
|
2
|
2
34120-39GC0-000 SpeedometerE28 |
34120-39GC0-000 |
US $471.68 |
||
|
3
|
3
34149-03G00-000 SCREW(3X14)Screw (3x14); |
34149-03G00-000 |
from US $2.13 |
||
|
4
|
4
34149-03G00-000 SCREW(3X14)Screw (3x14); |
34149-03G00-000 |
from US $2.13 |
||
|
5
|
5
34149-40H00-000 SCREW(5X16)Screw (5x16); |
34149-40H00-000 |
from US $2.69 |
||
|
6
|
6
34150-40H00-000 UPR CASE |
34150-40H00-000 |
from US $131.74 |
||
|
7
|
7
34256-40H00-000 UPR COVER |
34256-40H00-000 |
from US $92 |
||
|
8
|
8
34183-14A00-000
Screw
Screw; |
34183-14A00-000 |
— | ||
| replacement | |||||
|
8
|
8
34184-12B00-000 SCREWScrew; |
34184-12B00-000 |
from US $1.18 |
||
|
9
|
9
34189-40H00-000 WASHER(5.2X20X1.0)Washer (5.2x20x1.0); |
34189-40H00-000 |
from US $1.95 |
||
|
10
|
10
34257-39GC0-000 COVER ASSY,LWR |
34257-39GC0-000 |
from US $151.85 |
||
|
11
|
11
34952-39GC0-000 BRACKET |
34952-39GC0-000 |
from US $52.62 |
||
|
12
|
12
34955-39G00-000 DAMPER,NO.2 |
34955-39G00-000 |
from US $6.40 |
||
|
13
|
13
34955-39G10-000 DAMPER,NO.1 |
34955-39G10-000 |
from US $6.40 |
||
|
14
|
14
01547-0612A-000 BoltBolt, push rod guide Screw, speedometer; |
01547-0612A-000 |
from US $0.76 |
||
|
15
|
15
34938-39G10-000 GUIDE,SPEED SENSOR LEADGuide, speed sensor lead; |
34938-39G10-000 |
US $4.27 |
||
|
16
|
16
34990-39G00-000 SENSOR,SPEED |
34990-39G00-000 |
from US $147.44 |
||
|
17
|
17
09286-44001-000 SEAL,OIL(44X55X6)Seal, sensor oil Seal, sensor oil; |
09286-44001-000 |
from US $8.80 |
||
|
18
|
18
34983-27G00-000 MAGNETRotor |
34983-27G00-000 |
from US $18.40 |
||
|
19
|
19
09160-10121-000 WASHER(10.5X18X1)Washer (10.5x18x1); |
09160-10121-000 |
from US $0.84 |
||
|
20
|
20
09403-06410-000 CLAMPClamp Clip, sensor lead; |
09403-06410-000 |
from US $0.81 |
||
|
21
|
21
09407-14407-000 CLAMP(L:145)Band Clamp, sensor (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
22
|
22
36380-39G10-000
Box assy, pilot lamp
|
36380-39G10-000 |
— | ||
| replacement | |||||
|
22
|
22
36380-39G11-000 BOX ASSY,PILOT LAMP |
36380-39G11-000 |
from US $254.68 |
||
|
23
|
23
36381-39G10-000
Case unit
|
36381-39G10-000 |
— | ||
| replacement | |||||
|
23
|
23
36381-39G11-000 CASE UNIT |
36381-39G11-000 |
from US $143.89 |
||
|
24
|
24
36386-39G00-000 BRACKET,PILOT LAMPBracket, pilot lamp; |
36386-39G00-000 |
US $14.68 |
||
|
25
|
25
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
26
|
26
03511-0512B-000 SCREWScrew, pilot box; |
03511-0512B-000 |
from US $3.42 |
||
