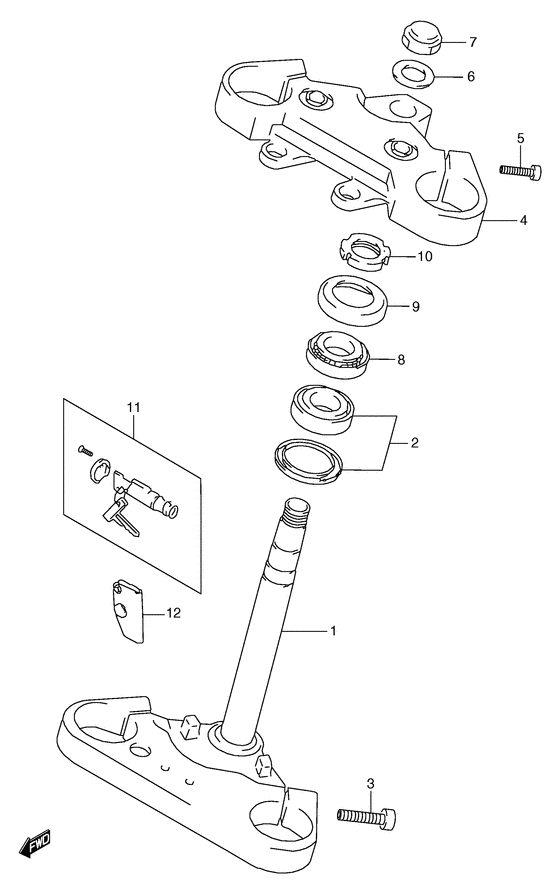

Steering stem Diagram Suzuki VZ800 Marauder
- Year
- 1997
- Model code
- VZ800V(E2) V
- Engine Capacity
- 800
- Model
- VZ800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-48E00-000 STEM,STEERING |
51410-48E00-000 |
US $630.08 |
||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
Bearing (30x55x17); |
09265-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30034-000 BearingBearing (30x55x17); |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
51451-48E10-000 BOLT,STEM |
51451-48E10-000 |
from US $4.12 |
||
|
4
|
4
51311-48E00-000
HEAD,STEERING STEM
|
51311-48E00-000 |
— | ||
|
5
|
5
51147-48E10-000 BOLT,STEM HEAD |
51147-48E10-000 |
from US $4.27 |
||
|
6
|
6
51356-10D03-000 WASHER(22.5X35.9X1.6) |
51356-10D03-000 |
from US $6.16 |
||
|
7
|
7
51353-24B00-000 NUT,CAPNut, cap |
51353-24B00-000 |
from US $18.48 |
||
|
8
|
8
09265-25019-000 BEARING(25X47X15)Bearing (25x47x15) Bearing (25x47x15); |
09265-25019-000 |
from US $25.84 |
||
|
9
|
9
51643-49002-000 SEAL,STEERING UPR DUSTDust seal Seal, steering upper dust; |
51643-49002-000 |
from US $6.84 |
||
|
10
|
10
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.36 |
||
|
11
|
11
51900-38810-000
Lock set, steering
Lock set, steering; |
51900-38810-000 |
— | ||
| replacement | |||||
|
11
|
11
51900-309V0-000 LOCK SET,STEERINGLock set, steering; |
51900-309V0-000 |
from US $117.50 |
||
|
12
|
12
51920-48E00-000 CASE,STEERING KEYCase, key |
51920-48E00-000 |
from US $10.05 |
||
