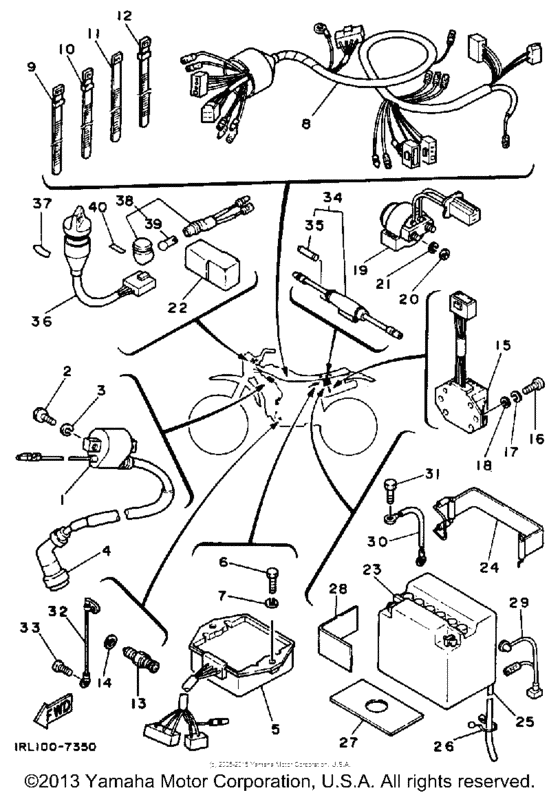

Electrical (1) Diagram Yamaha BW200 Big Wheel
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 200
- Model
- BW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
1
|
1
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
1
|
1
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
1
|
1
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
2
|
2
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
2
|
2
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
4
|
4
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
4
|
4
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
5
|
5
1RL-85540-M0-00
Cdi Unit Assembly
|
1RL-85540-M0-00 |
— | ||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
1RL-82590-01-00
Wire Harness Assembly
|
1RL-82590-01-00 |
— | ||
|
9
|
9
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
24W-82540-00-00
Neutral Switch Assy
|
24W-82540-00-00 |
— | ||
| replacements | |||||
|
13
|
13
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
13
|
13
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
14
|
14
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
15
|
15
1RL-81960-90-00
Rectifier/reg Assemblyregulator
|
1RL-81960-90-00 |
— | ||
|
16
|
16
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
19
|
19
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
20
|
20
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
20
|
20
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
22
|
22
12R-81950-01-00 Relay Assy (12R-01)1RL-92 |
12R-81950-01-00 |
from US $57.75 |
||
|
22
|
22
12R-81950-02-00 RELAY ASSY1RL-92 |
12R-81950-02-00 |
from US $53.20 |
||
|
23
|
23
BTG-GM7CZ-3D-00
Gm7Cz3D Gs Battery
GS BATTERY |
BTG-GM7CZ-3D-00 |
— | ||
| replacements | |||||
|
23
|
23
GM7-CZ3D0-00-00
PIPE 6
GS BATTERY |
GM7-CZ3D0-00-00 |
— | ||
|
23
|
23
YB7-CA000-00-00 Bat Yb7C-A YuGS BATTERY |
YB7-CA000-00-00 |
US $106.63 |
||
|
24
|
24
1RL-82131-00-00
Band, Battery
|
1RL-82131-00-00 |
— | ||
|
25
|
25
90445-084A7-00 Hose (L540) |
90445-084A7-00 |
from US $7.79 |
||
|
26
|
26
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
27
|
27
1RL-82122-00-00
Seat, Battery
|
1RL-82122-00-00 |
— | ||
|
28
|
28
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
28
|
28
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
29
|
29
1RL-82115-00-00 Wire, Plus Lead |
1RL-82115-00-00 |
US $26.59 |
||
| replacements | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
2JX-82115-00-00
Wire, Plus Lead
|
2JX-82115-00-00 |
— | ||
|
30
|
30
5H0-82116-00-00 Wire, Minus Lead |
5H0-82116-00-00 |
US $14.99 |
||
|
31
|
31
90109-06557-00 Bolt |
90109-06557-00 |
from US $2.41 |
||
|
32
|
32
1RL-82116-00-00 No Longer Available |
1RL-82116-00-00 |
US $7.93 |
||
|
33
|
33
90109-06557-00 Bolt |
90109-06557-00 |
from US $2.41 |
||
|
34
|
34
1E6-82150-00-00
Fuse Holder Assembly
|
1E6-82150-00-00 |
— | ||
|
35
|
35
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
36
|
36
1RL-82510-01-00
Main Switch Assembly
|
1RL-82510-01-00 |
— | ||
|
37
|
37
29U-83585-10-00
Label
|
29U-83585-10-00 |
— | ||
|
38
|
38
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
38
|
38
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
39
|
39
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
39
|
39
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
40
|
40
24W-83585-20-00
Label
|
24W-83585-20-00 |
— | ||
