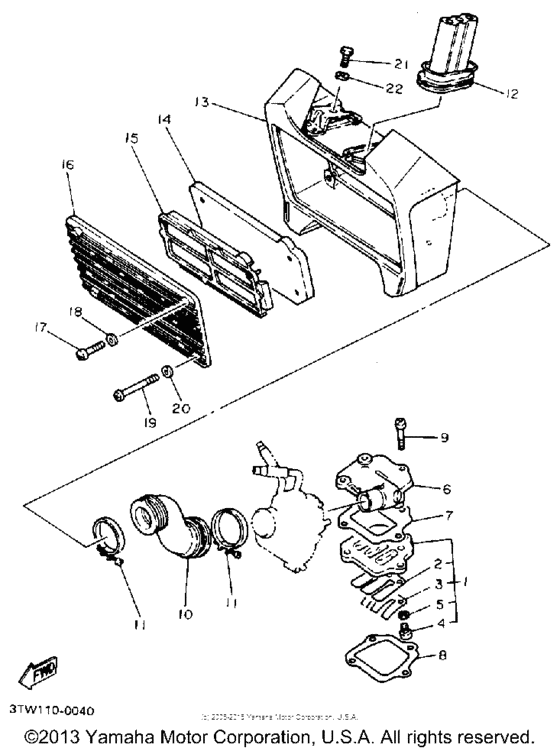

Air filter Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HA-13610-01-00
Reed Valve Assembly
|
1HA-13610-01-00 |
— | ||
|
2
|
2
56J-13613-00-00 Reed, Valve |
56J-13613-00-00 |
from US $26.17 |
||
|
3
|
3
300-13616-00-00 Stopper, Reed Valve |
300-13616-00-00 |
from US $7.79 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
21W-13555-00-00 Manifold, Intake |
21W-13555-00-00 |
from US $17.78 |
||
|
7
|
7
300-13622-10-00 Gasket, Valve Seat |
300-13622-10-00 |
from US $13.32 |
||
|
8
|
8
300-13621-10-00 Gasket, Valve Seat |
300-13621-10-00 |
from US $6.40 |
||
|
9
|
9
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
10
|
10
1RY-14453-00-00
Joint, Air Clnr 1
|
1RY-14453-00-00 |
— | ||
|
11
|
11
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
| replacement | |||||
|
11
|
11
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
|
12
|
12
5U8-14454-00-00 Joint |
5U8-14454-00-00 |
from US $8.50 |
||
|
13
|
13
1RY-W1441-00-00
Air Cleaner Case
|
1RY-W1441-00-00 |
— | ||
|
14
|
14
21W-14451-00-00 Element, Air Cleaner |
21W-14451-00-00 |
from US $3.72 |
||
|
15
|
15
21W-14458-00-00
Guide
|
21W-14458-00-00 |
— | ||
|
16
|
16
21W-14412-00-00
Cap, Cleaner Case 1
|
21W-14412-00-00 |
— | ||
|
17
|
17
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
17
|
17
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
17
|
17
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
18
|
18
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
19
|
19
98506-05050-00 Screw, Pan Head |
98506-05050-00 |
from US $1.40 |
||
| replacement | |||||
|
19
|
19
98507-05050-00 Screw, Pan Head |
98507-05050-00 |
from US $1.15 |
||
|
20
|
20
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
22
|
22
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
