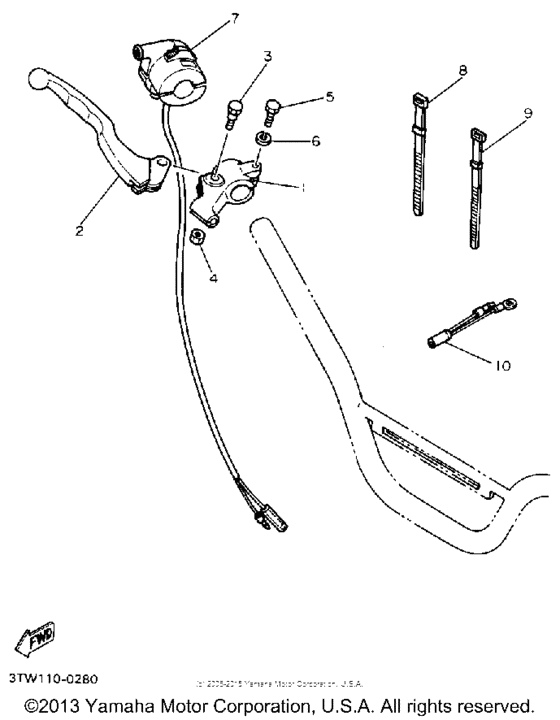

Handle switch & lever Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
2
|
2
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
2
|
2
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
3
|
3
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
3
|
3
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
4
|
4
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
5
|
5
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
21W-83976-00-00 Switch, Handle 1 |
21W-83976-00-00 |
from US $55.40 |
||
|
8
|
8
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
9
|
9
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
10
|
10
4V0-82519-00-00 Wire, Earth Lead |
4V0-82519-00-00 |
from US $8.08 |
||
