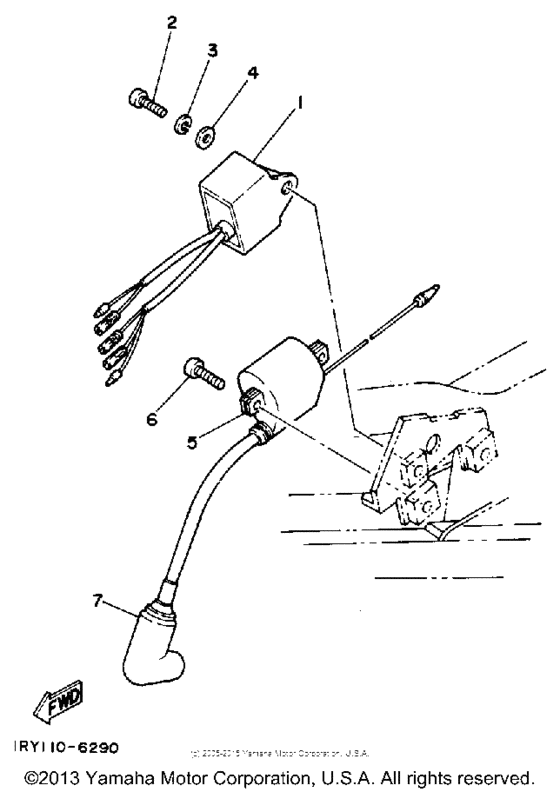

Electrical Diagram Yamaha BW80 Big Wheel
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21W-85540-20-00 C.d.i. Unit Assy |
21W-85540-20-00 |
from US $236.25 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
43G-82310-40-00 Ignition Coil Assembly |
43G-82310-40-00 |
US $136.12 |
||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
7
|
7
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
7
|
7
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
