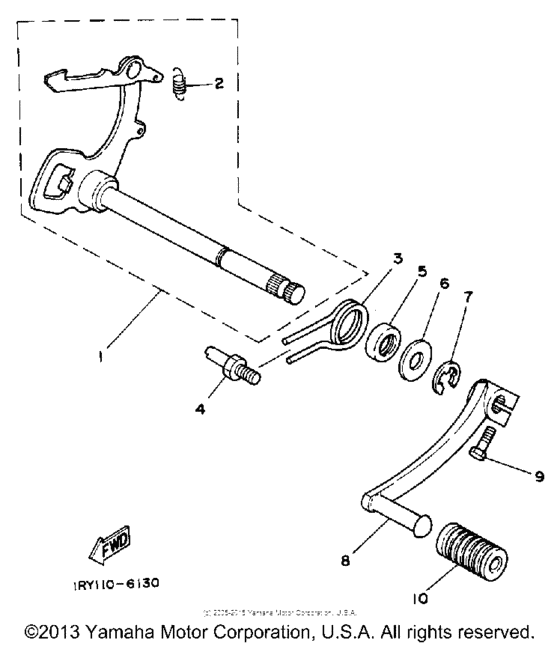

Shift shaft Diagram Yamaha BW80 Big Wheel
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58H-18101-03-00 Shift Shaft Assy |
58H-18101-03-00 |
from US $38.52 |
||
| replacement | |||||
|
1
|
1
58H-18101-04-00 Shift Shaft Assy |
58H-18101-04-00 |
from US $51.81 |
||
|
2
|
2
90506-08122-00 Spring, Tension |
90506-08122-00 |
from US $2.35 |
||
|
3
|
3
90508-32263-00 Spring,torsion |
90508-32263-00 |
from US $5.27 |
||
| replacement | |||||
|
3
|
3
90508-320A6-00 Spring, Torsion |
90508-320A6-00 |
from US $3.72 |
||
|
4
|
4
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
4
|
4
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
5
|
5
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
6
|
6
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
8
|
8
1RY-18111-00-00 Pedal, Shift |
1RY-18111-00-00 |
US $48.19 |
||
|
9
|
9
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
