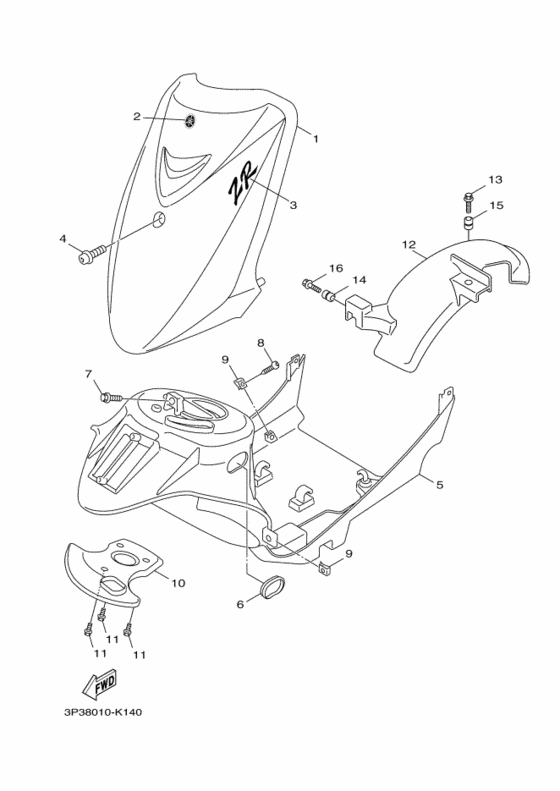

Fender Diagram Yamaha CE50 Jog ZR
- Year
- 2013
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 3P3B
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CE50ZR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3P3-F1511-00-P0 Fender, FrontＵＲ ＳＭＸ |
3P3-F1511-00-P0 |
US $143.69 |
||
|
2
|
2
5TY-F1569-00-00 Graphic 1グラフイツク １; |
5TY-F1569-00-00 |
from US $2.92 |
||
|
3
|
3
3P3-F157C-10-00 Emblem 3D |
3P3-F157C-10-00 |
US $44.90 |
||
|
4
|
4
90159-06812-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
90159-06812-00 |
from US $3.47 |
||
|
5
|
5
3P3-F1552-11-00 Fender, Inner |
3P3-F1552-11-00 |
US $106.11 |
||
|
6
|
6
3P3-F151B-00-00 Cap |
3P3-F151B-00-00 |
US $11.33 |
||
|
7
|
7
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
8
|
8
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
8
|
8
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
9
|
9
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
9
|
9
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
3P3-F1553-00-00 Fender, Inner 2 |
3P3-F1553-00-00 |
US $10.63 |
||
|
11
|
11
90119-06802-00 Bolt, With Washer |
90119-06802-00 |
US $1.56 |
||
| replacements | |||||
|
11
|
11
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
11
|
11
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
|
12
|
12
3P3-F1611-01-00 Fender, Rear |
3P3-F1611-01-00 |
US $18.14 |
||
|
13
|
13
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
13
|
13
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
14
|
14
90387-06868-00 Collarカラー; |
90387-06868-00 |
from US $1.37 |
||
|
15
|
15
90387-063F7-00 Collarカラー; |
90387-063F7-00 |
from US $2.91 |
||
|
16
|
16
90119-06873-00 Bolt, With Washer |
90119-06873-00 |
from US $0.70 |
||
