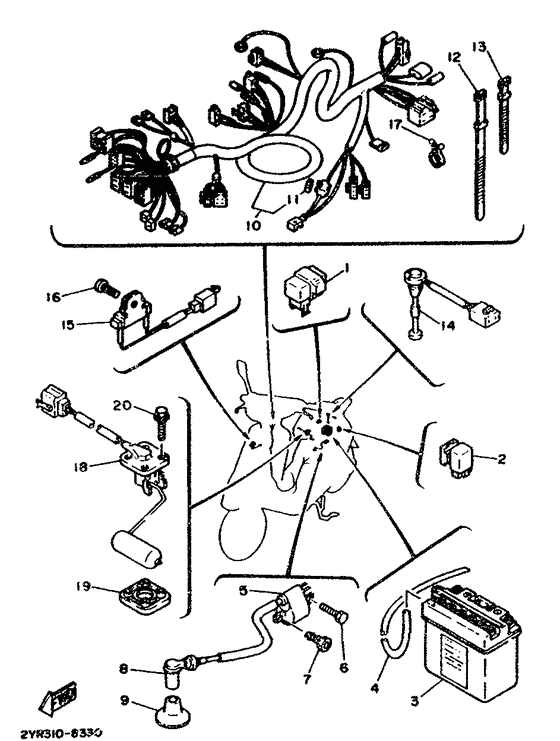

Electrical 2 Diagram Yamaha CG50 Jog
- Year
- 1988
- Colour
- Bluish Black (BIB; 00MW)
- Model code
- 2YR1
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CG50E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2JA-85540-M0-00 C.d.i. Unit Assy |
2JA-85540-M0-00 |
US $133.47 |
||
| replacement | |||||
|
01
|
01
2NE-85540-M0-00 Cdi Unit Assembly |
2NE-85540-M0-00 |
US $133.47 |
||
|
02
|
02
27V-81940-02-00
Starter Relay Assy
|
27V-81940-02-00 |
— | ||
| replacement | |||||
|
02
|
02
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
03
|
03
38E-82110-79-00
Battery Assy
Yamaha |
38E-82110-79-00 |
— | ||
| replacements | |||||
|
03
|
03
38E-82110-02-00
Battery Gm4-3B (Gs)
Yamaha |
38E-82110-02-00 |
— | ||
|
03
|
03
38E-82110-00-00
Battery (Gm4-3B Gs/nippon)
Yamaha |
38E-82110-00-00 |
— | ||
|
04
|
04
90445-064A7-00
Hose
|
90445-064A7-00 |
— | ||
|
05
|
05
2JA-82310-M0-00 Ignition Coil Assy |
2JA-82310-M0-00 |
from US $58.88 |
||
| replacements | |||||
|
05
|
05
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
05
|
05
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
05
|
05
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
06
|
06
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
06
|
06
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
06
|
06
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
07
|
07
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
08
|
08
2JA-82370-00-00 Plug Cap Assembly |
2JA-82370-00-00 |
US $16.43 |
||
| replacement | |||||
|
08
|
08
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
09
|
09
2JA-82372-00-00 Seal, Plug Cap |
2JA-82372-00-00 |
from US $4.11 |
||
| replacement | |||||
|
09
|
09
3KJ-82372-00-00 Seal, Plug Cap |
3KJ-82372-00-00 |
from US $4.11 |
||
|
10
|
10
2YR-82590-00-00
Wire Harness Assy
|
2YR-82590-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
13
|
13
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
14
|
14
2JA-85720-00-00
Oil Level Gauge Assy
|
2JA-85720-00-00 |
— | ||
| replacements | |||||
|
14
|
14
3MA-85720-01-00
element
|
3MA-85720-01-00 |
— | ||
|
14
|
14
2JA-85720-01-00
Oil Level Gauge Assy
|
2JA-85720-01-00 |
— | ||
|
15
|
15
2JA-85370-00-00 Resistor Assy |
2JA-85370-00-00 |
US $38.72 |
||
| replacement | |||||
|
15
|
15
3WG-H5370-10-00
Resistor Assy
|
3WG-H5370-10-00 |
— | ||
|
16
|
16
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
17
|
17
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
18
|
18
3CP-85752-00-00
Sending Unit Assembly, F/meter
|
3CP-85752-00-00 |
— | ||
| replacement | |||||
|
18
|
18
3CP-85752-01-00
Sending Unit Assembly, F/meter
|
3CP-85752-01-00 |
— | ||
|
19
|
19
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
20
|
20
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
