Meter Diagram Yamaha CH50 Beluga
- Year
- 1988
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3EC2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CH50
Difficulties in parts search?
Difficulties in parts search?

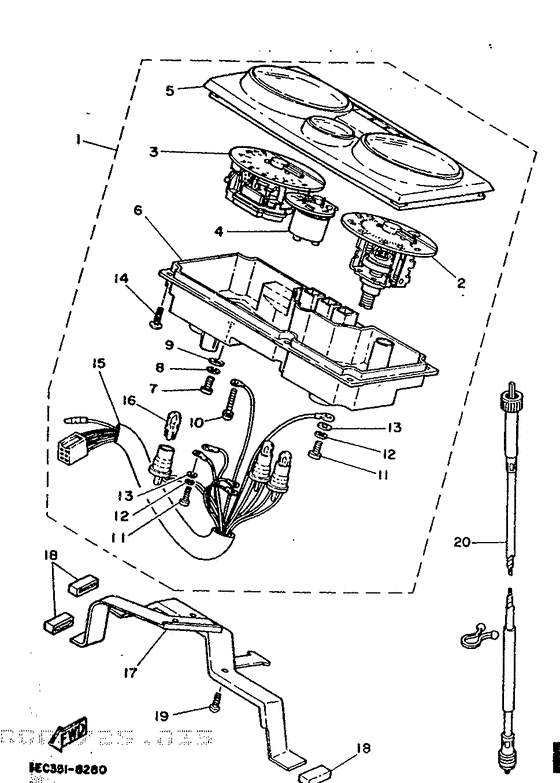

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3EC-83500-10-00
Meter Assy
|
3EC-83500-10-00 |
— | ||
|
02
|
02
3EC-8351A-00-00
Speedo. Comp
|
3EC-8351A-00-00 |
— | ||
|
03
|
03
3EC-8354A-00-00
Tachometer Assy
|
3EC-8354A-00-00 |
— | ||
|
04
|
04
54U-85750-00-00
Fuel Meter Assy
|
54U-85750-00-00 |
— | ||
|
05
|
05
3EC-W8354-10-00
Meter Cover Assy
|
3EC-W8354-10-00 |
— | ||
|
06
|
06
3EC-83572-00-00
Case, Speedometer Lower
|
3EC-83572-00-00 |
— | ||
|
07
|
07
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
08
|
08
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
09
|
09
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
10
|
10
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
11
|
11
98501-03010-00 Screw, Pan Head |
98501-03010-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
98580-03010-00 Screw Pan Head |
98580-03010-00 |
from US $1.98 |
||
|
12
|
12
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
13
|
13
92902-03600-00 Washer |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
14
|
14
97702-40514-00 Screw, Tapping |
97702-40514-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
97707-40614-00 Screw, Pan Tap.2 Slit |
97707-40614-00 |
from US $1.21 |
||
|
15
|
15
3EC-83509-00-00
Socket Cord Assy
|
3EC-83509-00-00 |
— | ||
|
16
|
16
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
16
|
16
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
17
|
17
54U-83543-00-00
Damper, Bracket
|
54U-83543-00-00 |
— | ||
|
18
|
18
35R-83543-00-00
Damper, Bracket
|
35R-83543-00-00 |
— | ||
|
19
|
19
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
20
|
20
54U-83550-00-00
Speedometer Cable Assy
|
54U-83550-00-00 |
— | ||
|
21
|
21
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
