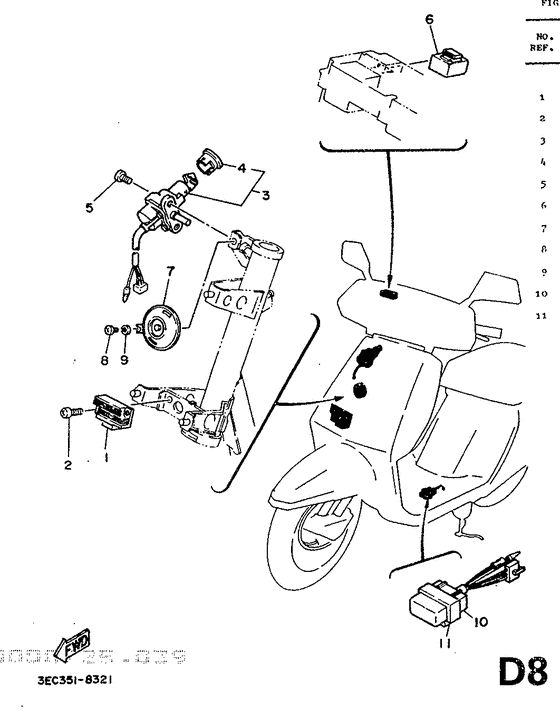

Electrical 5 Diagram Yamaha CH50 Beluga
- Year
- 1989
- Colour
- Light Vermilion (LV; 0024)
- Model code
- 3EC4
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
02
|
02
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
02
|
02
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
02
|
02
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
03
|
03
3EC-82501-10-00
Main Switch Steering Lock
|
3EC-82501-10-00 |
— | ||
|
04
|
04
1GJ-82552-20-00
Cap, Switch
|
1GJ-82552-20-00 |
— | ||
|
05
|
05
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
05
|
05
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
06
|
06
2GJ-83350-00-00
Flasher Relay Assy
|
2GJ-83350-00-00 |
— | ||
|
07
|
07
34Y-83371-00-00 Horn |
34Y-83371-00-00 |
from US $55.87 |
||
| replacement | |||||
|
07
|
07
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
07
|
07
3EC-83371-10-00
Horn
Modele 89 |
3EC-83371-10-00 |
— | ||
|
08
|
08
92506-06012-00 Screw |
92506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
09
|
09
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
3EC-85590-00-00
Control Unit Assy
|
3EC-85590-00-00 |
— | ||
|
11
|
11
17W-85546-00-00
Band
|
17W-85546-00-00 |
— | ||
|
12
|
12
3EC-F117A-00-00
Stay
|
3EC-F117A-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
