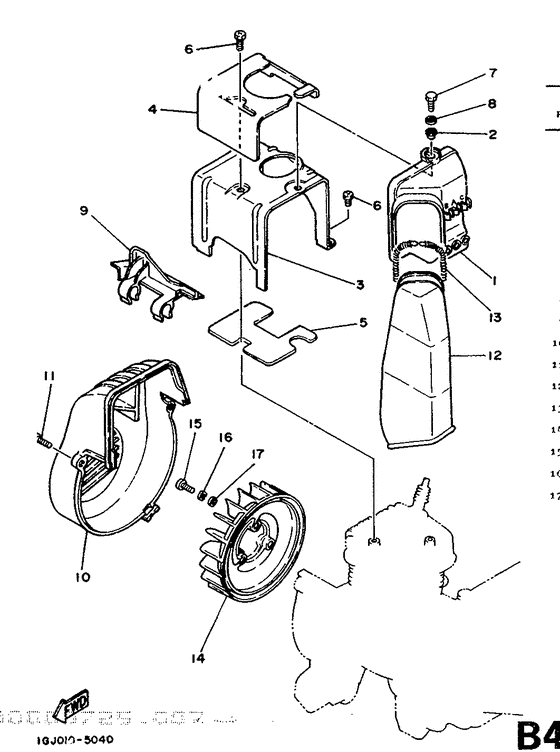

Refroidissement ventilation Diagram Yamaha CH50 Beluga
- Year
- 1989
- Colour
- Light Vermilion (LV; 0024)
- Model code
- 3EC4
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1HV-12651-00-00
Air Shroud, Cylinder 1
|
1HV-12651-00-00 |
— | ||
|
02
|
02
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
03
|
03
35R-12652-00-00
Air Shroud, Cylinder 2
|
35R-12652-00-00 |
— | ||
| replacement | |||||
|
03
|
03
1NT-E2652-00-00
Air Shroud, Cylinder 2
|
1NT-E2652-00-00 |
— | ||
|
04
|
04
1HV-12659-00-00
Damper, Air Shroud 2
|
1HV-12659-00-00 |
— | ||
|
05
|
05
14T-11161-00-00
Absorber 1
|
14T-11161-00-00 |
— | ||
|
06
|
06
90153-06020-00 Screw, Hexagon |
90153-06020-00 |
from US $1.49 |
||
|
07
|
07
97001-06014-00 Bolt |
97001-06014-00 |
US $2.41 |
||
| replacements | |||||
|
07
|
07
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
07
|
07
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
07
|
07
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
08
|
08
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
24G-12655-01-00
Stay, Clamp 1
|
24G-12655-01-00 |
— | ||
|
10
|
10
1HV-12653-01-00
Air Shroud, Cylinder 3
|
1HV-12653-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
92506-06020-00 Screw |
92506-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
11
|
11
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
12
|
12
35R-12654-00-00
Air Shroud, Cylinder 4
|
35R-12654-00-00 |
— | ||
|
13
|
13
90506-06279-00 Spring, Tension |
90506-06279-00 |
US $8.55 |
||
|
14
|
14
35R-12611-00-00
Fan
|
35R-12611-00-00 |
— | ||
|
15
|
15
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
