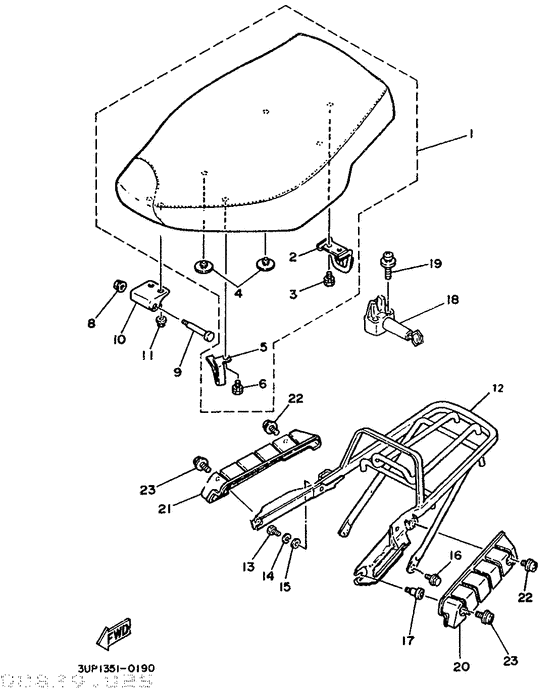

Seat Diagram Yamaha CH80 Beluga
- Year
- 1992
- Colour
- Bleu Ocean (BOC; 0315)
- Model code
- 3WX2
- Sales region
- France (999)
- Engine Capacity
- 80
- Model
- CH80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UP-F4730-10-00
Double Seat Assy
Pr. les 2 teintes |
3UP-F4730-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Pr. les 2 teintes |
999-99999-99-00 |
— | ||
|
02
|
02
3UP-F4728-00-11
Bracket, Seat
|
3UP-F4728-00-11 |
— | ||
|
03
|
03
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
03
|
03
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
03
|
03
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
04
|
04
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
05
|
05
3UP-F1398-00-00
Hanger, Helmet
|
3UP-F1398-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3UP-F1398-00-N0
Hanger, Helmet
|
3UP-F1398-00-N0 |
— | ||
|
06
|
06
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
06
|
06
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
06
|
06
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
08
|
08
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
08
|
08
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
09
|
09
90109-06504-00 Bolt |
90109-06504-00 |
from US $2.64 |
||
|
10
|
10
2T4-24726-10-00
Hinge, Seat
|
2T4-24726-10-00 |
— | ||
|
11
|
11
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
12
|
12
3UP-F4810-00-00
Carrier Assy
|
3UP-F4810-00-00 |
— | ||
|
13
|
13
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
13
|
13
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
90105-06138-00 Bolt, Flange |
90105-06138-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
17
|
17
90109-06790-00
Bolt
|
90109-06790-00 |
— | ||
|
18
|
18
2JA-24705-00-00 Seat Lock Assy |
2JA-24705-00-00 |
from US $72.72 |
||
| replacement | |||||
|
18
|
18
2JG-24705-00-00 Seat Lock Assembly |
2JG-24705-00-00 |
from US $72.72 |
||
|
19
|
19
901-59060-64-00 Screw, With Washer |
901-59060-64-00 |
from US $2.69 |
||
|
20
|
20
35R-24845-00-00
Cover 1
Pr. les 2 teintes |
35R-24845-00-00 |
— | ||
|
21
|
21
35R-24846-00-00
Cover 2
Pr. les 2 teintes |
35R-24846-00-00 |
— | ||
|
22
|
22
90159-06087-00 Screw, With Washer |
90159-06087-00 |
US $1.70 |
||
| replacement | |||||
|
22
|
22
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
23
|
23
90159-06093-00 Screw, With Washer |
90159-06093-00 |
from US $1.36 |
||
