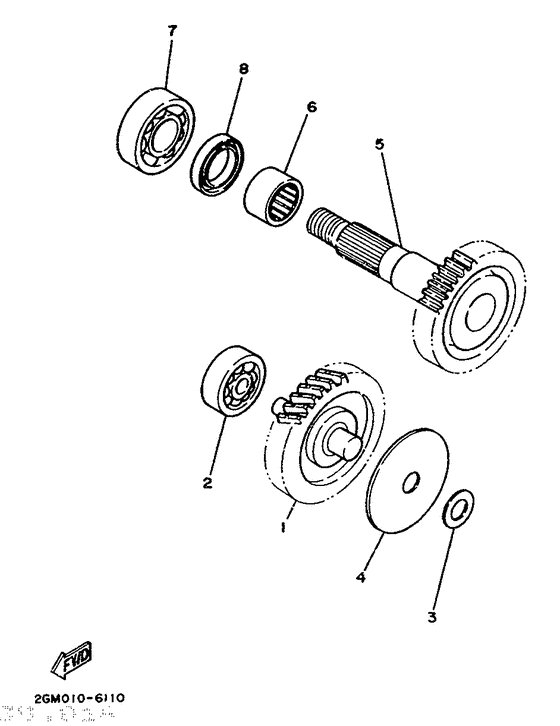

Transmission Diagram Yamaha CH80 Beluga
- Year
- 1992
- Colour
- Bleu Ocean (BOC; 0315)
- Model code
- 3WX2
- Sales region
- France (999)
- Engine Capacity
- 80
- Model
- CH80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UP-17410-00-00
Main Axle Comp
|
3UP-17410-00-00 |
— | ||
|
02
|
02
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
03
|
03
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
03
|
03
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
04
|
04
90208-12042-00 Washer, Conical Spring |
90208-12042-00 |
US $8.64 |
||
|
05
|
05
2GM-17420-00-00
Drive Axle Assy
|
2GM-17420-00-00 |
— | ||
|
06
|
06
933-17322-41-00 Bearing |
933-17322-41-00 |
from US $24.70 |
||
|
07
|
07
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
08
|
08
93102-22314-00 Seal, Oil |
93102-22314-00 |
from US $10.34 |
||
| replacement | |||||
|
08
|
08
93102-22897-00 Oil Seal(1Jy) |
93102-22897-00 |
from US $8.88 |
||
