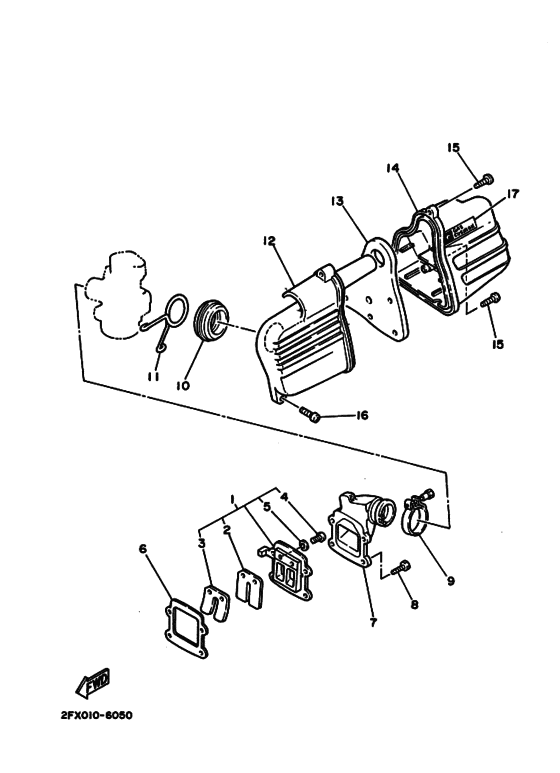

Intake Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Straw Yellow (STY; 00RW)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2EX-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
2EX-13610-00-00 |
from US $49.32 |
||
|
2
|
2
35R-13613-00-00 Reed, Valve．リード，バルブ; |
35R-13613-00-00 |
from US $5.67 |
||
|
3
|
3
2EX-13616-00-00 Stopper, Reed Valve．ストツパ，リードバルブ; |
2EX-13616-00-00 |
US $5.14 |
||
|
4
|
4
98501-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
35R-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
35R-13621-00-00 |
from US $8.08 |
||
| replacement | |||||
|
6
|
6
3WX-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
3WX-13621-00-00 |
from US $8.08 |
||
|
7
|
7
35R-13555-01-00
Manifold, Intake
マニホールド，インテーク; |
35R-13555-01-00 |
— | ||
|
8
|
8
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
9
|
9
90460-32242-00 Hose Clamp Assyクランプ，ホース; |
90460-32242-00 |
from US $7.08 |
||
| replacement | |||||
|
9
|
9
90450-32081-00 Hose Clamp Assyクランプ，ホース; |
90450-32081-00 |
from US $7.36 |
||
|
10
|
10
27V-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナー １; |
27V-14453-00-00 |
from US $18.84 |
||
|
11
|
11
90468-20127-00 Clip |
90468-20127-00 |
from US $3.12 |
||
| replacement | |||||
|
11
|
11
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.33 |
||
|
12
|
12
2EX-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
2EX-14411-00-00 |
— | ||
|
13
|
13
1KX-14451-00-00 Element, Air Cleanerエレメント，エアクリーナ; |
1KX-14451-00-00 |
US $5.38 |
||
|
14
|
14
1KX-14412-00-00
Cap, Cleaner Case 1
キヤツプ，クリーナーケース １; |
1KX-14412-00-00 |
— | ||
|
15
|
15
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
16
|
16
92506-06020-00 Screw |
92506-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
16
|
16
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
