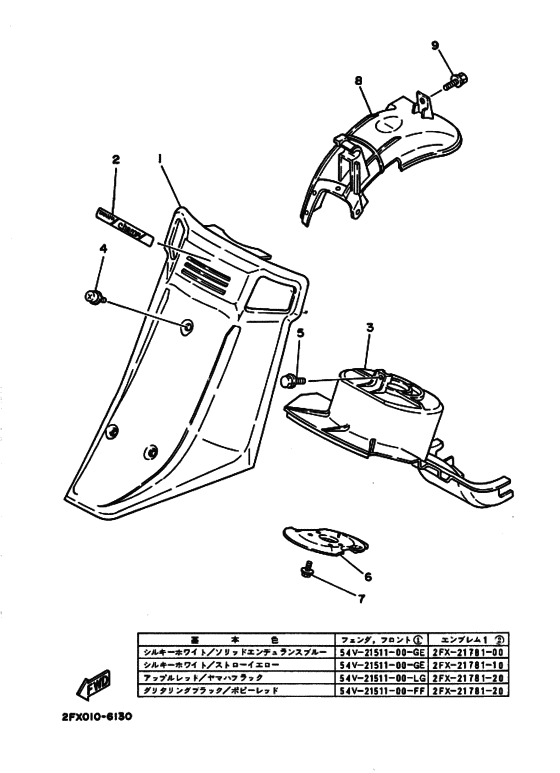

ﾌｴﾝﾀﾞ-1 cj50emﾖｳ (2FX) Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54V-21511-00-LG
Fender, Front
ＵＲ アツプルレツド |
54V-21511-00-LG |
— | ||
|
2
|
2
2FX-21781-20-00
Emblem 1
ＵＲ |
2FX-21781-20-00 |
— | ||
|
3
|
3
54V-21552-00-00
Fender, Inner
フエンダ，インナ; |
54V-21552-00-00 |
— | ||
|
4
|
4
90159-06124-00 Screw, With Washer |
90159-06124-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
90159-06178-00 Screw, With Washer(3Yj) |
90159-06178-00 |
from US $2.35 |
||
|
5
|
5
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
5
|
5
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
6
|
6
27V-21553-02-00
Fender, Inner 2
フエンダ，インナ ２; |
27V-21553-02-00 |
— | ||
| replacement | |||||
|
6
|
6
27V-21553-03-00 Fender, Inner 2フエンダ，インナ ２; |
27V-21553-03-00 |
US $18.85 |
||
|
7
|
7
90119-06085-00 Bolt, With Washer |
90119-06085-00 |
from US $2.41 |
||
| replacements | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
7
|
7
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
|
8
|
8
54V-Y2162-01-00
Mud Guard Comp
マツドガードコンプリート; |
54V-Y2162-01-00 |
— | ||
|
9
|
9
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
