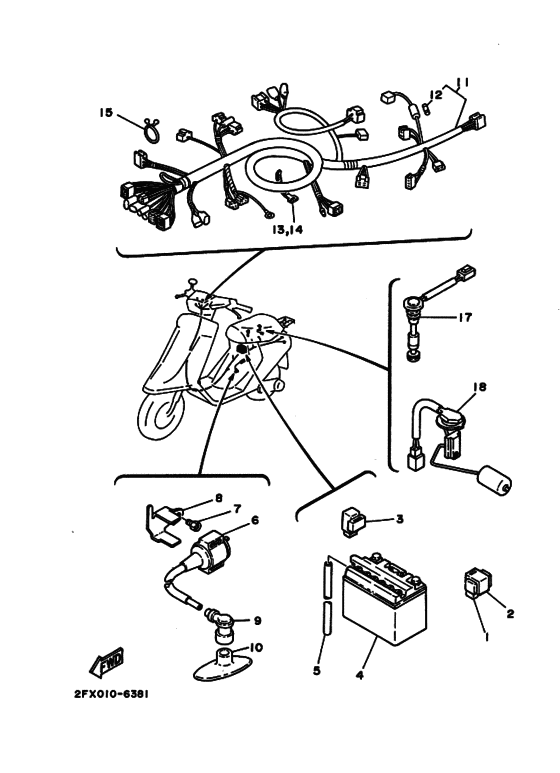

Electrical 2 Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25L-85540-M0-00 Cdi Unit AssemblyＣ．Ｄ．Ｉユニツトアセンブリ; |
25L-85540-M0-00 |
from US $127.11 |
||
|
2
|
2
25K-85546-00-00 Band |
25K-85546-00-00 |
from US $16.31 |
||
|
3
|
3
27V-81940-02-00
Starter Relay Assy
スタータスイツチアセンブリ; |
27V-81940-02-00 |
— | ||
| replacement | |||||
|
3
|
3
29U-81950-93-00 Relay Assy (Aca12115-1)スタータスイツチアセンブリ; |
29U-81950-93-00 |
from US $35.70 |
||
|
4
|
4
90890-85838-00
Battery Assy(Gs Gm4-3B)
バツテリー ; ＧＳ ＧＭ４−３Ｂ |
90890-85838-00 |
— | ||
|
5
|
5
27V-82112-00-00
Pipe, Breather
パイプ，ブリーザ; |
27V-82112-00-00 |
— | ||
|
6
|
6
2EX-82310-M0-00
Ignition Coil Assy
|
2EX-82310-M0-00 |
— | ||
|
7
|
7
90153-06044-00 Screw, Hexagon |
90153-06044-00 |
from US $2.05 |
||
|
8
|
8
2FX-82316-00-00
Bracket, Ignition Coil
|
2FX-82316-00-00 |
— | ||
|
9
|
9
117-82370-20-00 Plug Cap Assy |
117-82370-20-00 |
from US $18.99 |
||
| replacement | |||||
|
9
|
9
166-82370-20-00 Plug Cap Assy |
166-82370-20-00 |
from US $20.94 |
||
|
10
|
10
27V-82372-01-00
Seal, Plug Cap
シール，プラグキヤツプ; |
27V-82372-01-00 |
— | ||
|
11
|
11
2FX-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
2FX-82590-00-00 |
— | ||
|
12
|
12
27V-82151-00-00 Fuse．ヒューズ ; ７Ａ |
27V-82151-00-00 |
from US $3.68 |
||
|
13
|
13
25G-83936-00-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
25G-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-01-00 |
from US $1.56 |
||
|
14
|
14
437-83936-10-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
437-83936-11-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-11-00 |
from US $1.56 |
||
|
15
|
15
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
17
|
17
25K-85720-00-00
Oil Lvl Gauge Assembly
オイルレベルゲージアセンブリ; |
25K-85720-00-00 |
— | ||
|
18
|
18
54V-85752-00-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
54V-85752-00-00 |
— | ||
