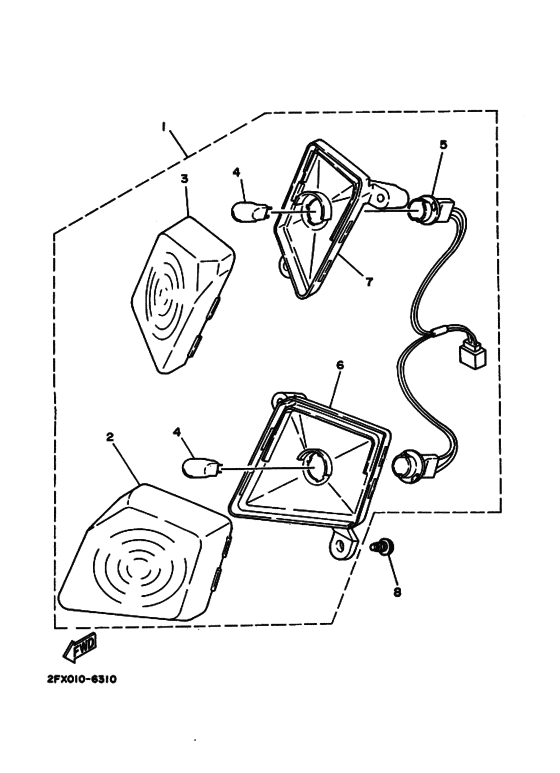

Flasher light Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54V-83310-00-00
Front Flasher Light Assy 1
|
54V-83310-00-00 |
— | ||
|
2
|
2
54V-83312-00-00
Lens, Flasher (L.h)
．レンズ，フラツシヤ ; レフト |
54V-83312-00-00 |
— | ||
|
3
|
3
54V-83322-00-00
Lens, Flasher(R.h)
．レンズ，フラツシヤ ; ライト |
54V-83322-00-00 |
— | ||
|
4
|
4
54V-83311-00-00
Bulb, Flasher (12V-8W)
．バルブ，フラツシヤ ; １２Ｖ−８Ｗ |
54V-83311-00-00 |
— | ||
|
5
|
5
54V-8331J-00-00
Socket Comp. 1
．ソケツトコンプリート １; |
54V-8331J-00-00 |
— | ||
|
6
|
6
54V-83314-00-00
Base, Flasher 1 (Black)
．ベース，フラツシヤ ; レフト |
54V-83314-00-00 |
— | ||
|
7
|
7
54V-83324-00-00
Base, Flasher 2 (Black)
．ベース，フラツシヤ ; ライト |
54V-83324-00-00 |
— | ||
|
8
|
8
90167-05030-00 Screw, Tapping |
90167-05030-00 |
from US $1.70 |
