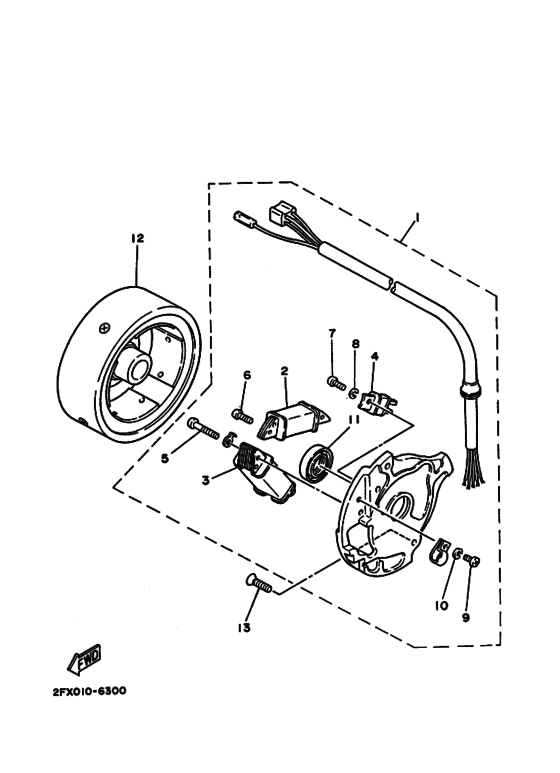

Generator Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1YT-85560-M0-00
Base Assy
ベースアセンブリ; |
1YT-85560-M0-00 |
— | ||
|
2
|
2
52W-85520-M0-00 Coil, Charge．コイル，チヤージ; |
52W-85520-M0-00 |
US $100.44 |
||
| replacements | |||||
|
2
|
2
37A-85520-M1-00 Coil, Charge．コイル，チヤージ; |
37A-85520-M1-00 |
from US $94.03 |
||
|
2
|
2
37A-85520-M2-00 COIL, CHARGE．コイル，チヤージ; |
37A-85520-M2-00 |
US $99.59 |
||
|
3
|
3
1YT-81313-M0-00
Coil, Lighting 1
．コイル，ライテイング １; |
1YT-81313-M0-00 |
— | ||
|
4
|
4
1HH-85580-M0-00
Coil, Pulser
．コイル，パルサ; |
1HH-85580-M0-00 |
— | ||
|
5
|
5
90157-04045-00 Screw, Pan Head．スクリユ，パンヘツド; |
90157-04045-00 |
US $1.21 |
||
| replacement | |||||
|
5
|
5
98517-04025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04025-00 |
from US $1.21 |
||
|
6
|
6
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
7
|
7
985-80040-10-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80040-10-00 |
from US $1.07 |
||
|
8
|
8
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
985-01040-06-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-06-00 |
— | ||
| replacements | |||||
|
9
|
9
985-17040-16-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-17040-16-00 |
from US $1.52 |
||
|
9
|
9
901-59041-44-00
Screw, With Washer
．スクリユ，パンヘツド; |
901-59041-44-00 |
— | ||
|
9
|
9
98517-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04006-00 |
from US $1.28 |
||
|
9
|
9
99999-04427-00 Screw,pan Head W/washer．スクリユ，パンヘツド; |
99999-04427-00 |
US $3.04 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
93104-19082-00 Oil Seal, So-Type．オイルシール; |
93104-19082-00 |
US $7.18 |
||
|
12
|
12
1GJ-85550-M0-00
Rotor Assy
ロータアセンブリ; |
1GJ-85550-M0-00 |
— | ||
| replacement | |||||
|
12
|
12
1GJ-85550-M1-00
Rotor Assy
ロータアセンブリ; |
1GJ-85550-M1-00 |
— | ||
|
13
|
13
92701-06015-00 Screw, Flat Head |
92701-06015-00 |
from US $2.27 |
||
| replacements | |||||
|
13
|
13
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.36 |
||
|
13
|
13
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
