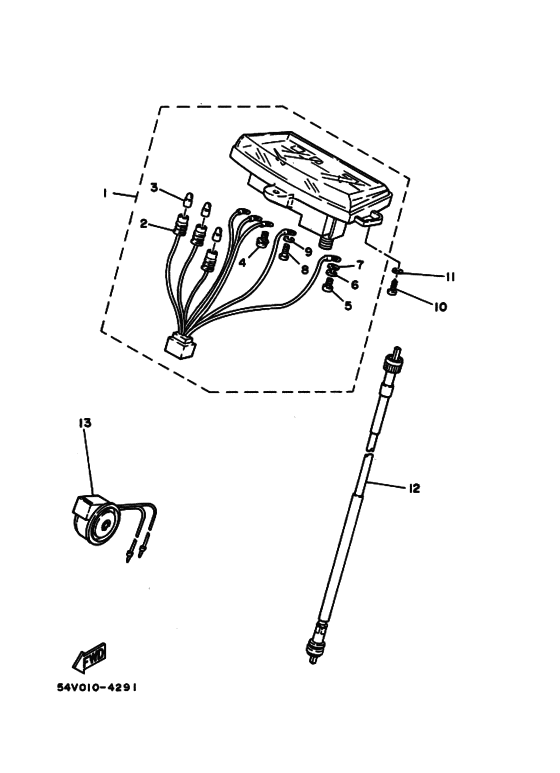

Meter Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FX-83510-50-00
Speedometer Assy
スピードメータアセンブリ; |
2FX-83510-50-00 |
— | ||
|
2
|
2
54V-83509-00-00
Socket Cord Assy
．ソケツトコードアセンブリ; |
54V-83509-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．ソケツトコードアセンブリ; |
999-99999-99-00 |
— | ||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)．バルブ ; １２Ｖ−３．４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．バルブ ; １２Ｖ−３．４Ｗ |
4G1-84744-00-XX |
— | ||
|
4
|
4
90159-03102-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
90159-03102-00 |
from US $1.84 |
||
|
5
|
5
985-80040-10-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80040-10-00 |
from US $1.07 |
||
|
6
|
6
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
7
|
7
929-01046-00-00
Washer
．ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90046-00-00 Washer, Plate．ワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
8
|
8
98501-03010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03010-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
98580-03010-00 Screw Pan Head．スクリユ，パンヘツド; |
98580-03010-00 |
from US $1.98 |
||
|
9
|
9
92990-03100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
10
|
10
97702-50616-00 Screw, Tapping |
97702-50616-00 |
US $1.42 |
||
|
11
|
11
92990-05200-00 Washer, Plainワツシヤ，プレーン; |
92990-05200-00 |
from US $1.56 |
||
|
12
|
12
54V-83550-01-00 Spdmtr Cableスピードメータケーブルアセンブリ; |
54V-83550-01-00 |
from US $36.06 |
||
| replacement | |||||
|
12
|
12
3KJ-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
3KJ-83550-01-00 |
from US $25.16 |
||
|
13
|
13
27V-83390-20-00
Audio Pilot Assy
オーデイオパイロツトアセンブリ; |
27V-83390-20-00 |
— | ||
