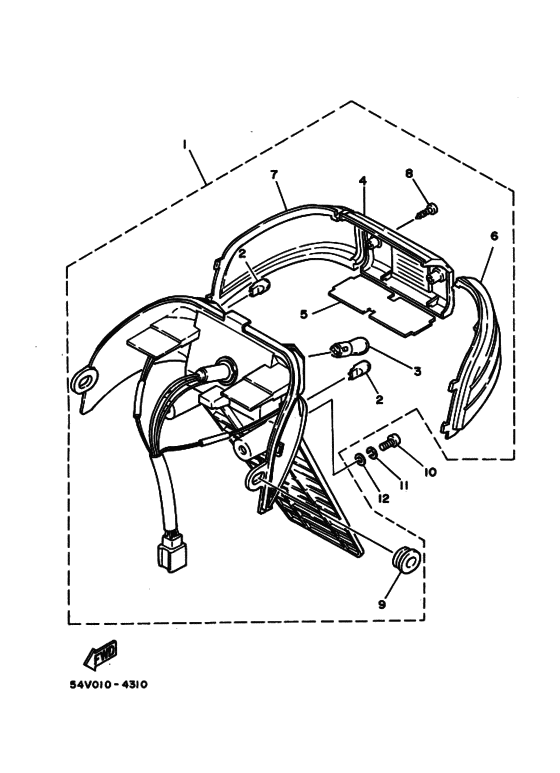

Taillight Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54V-84700-00-00
Taillight Assy
テールライトアセンブリ; |
54V-84700-00-00 |
— | ||
|
2
|
2
54V-83311-00-00
Bulb, Flasher (12V-8W)
．バルブ，フラツシヤ ; １２Ｖ−８Ｗ |
54V-83311-00-00 |
— | ||
|
3
|
3
54V-84714-00-00 Bulb (12V-21/5W)．バルブ ; １２Ｖ−２１／５Ｗ |
54V-84714-00-00 |
US $4.96 |
||
| replacement | |||||
|
3
|
3
1A2-84714-50-00 Bulb (12V-21/5W)．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-50-00 |
from US $5.28 |
||
|
4
|
4
54V-84721-00-00
Lens, Taillight
．レンズ，テールライト; |
54V-84721-00-00 |
— | ||
|
5
|
5
54V-84743-00-00
Lens, Licence Light
．レンズ，ライセンスライト; |
54V-84743-00-00 |
— | ||
|
6
|
6
54V-83332-00-00
Lens, Flasher (L.h)
．レンズ，フラツシヤ ; レフト |
54V-83332-00-00 |
— | ||
|
7
|
7
54V-83342-00-00
Lens, Flasher (R.h)
．レンズ，フラツシヤ ; ライト |
54V-83342-00-00 |
— | ||
|
8
|
8
97780-40120-00 Ybs83-420 Screw,panh,tapping．スクリユ，タツピング; |
97780-40120-00 |
from US $1.42 |
||
|
9
|
9
90480-01333-00 Grommet．グロメツト; |
90480-01333-00 |
US $2.27 |
||
|
10
|
10
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
12
|
12
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
