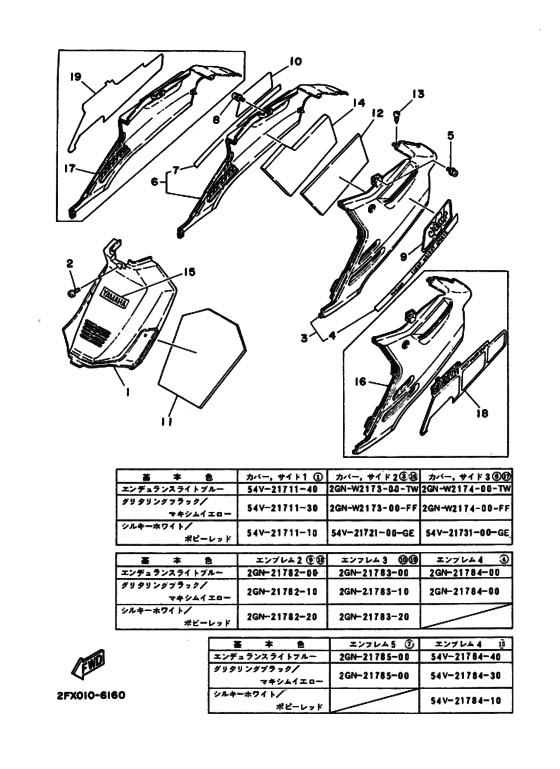

ｻｲﾄﾞｶﾊﾞｰ 2 Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Endurance Light Blue (ELB; 00TW)
- Model code
- 2GN
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CJ50ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54V-21711-40-00
Cover, Side 1
カバー，サイド １; ＵＲ ソリツドエンデユランスブルー |
54V-21711-40-00 |
— | ||
|
2
|
2
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
2
|
2
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
3
|
3
2GN-W2173-00-TW
Side Cover 3
カバー，サイド ２; ＵＲ エンデユランスライトブルー |
2GN-W2173-00-TW |
— | ||
|
4
|
4
2GN-21784-00-00
Emblem 4
．エンブレム ４; |
2GN-21784-00-00 |
— | ||
|
5
|
5
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
5
|
5
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
6
|
6
2GN-W2174-00-TW
Cover, Side 3
カバー，サイド ３; ＵＲ エンデユランスライトブルー |
2GN-W2174-00-TW |
— | ||
|
7
|
7
2GN-21785-00-00
Emblem 5
．エンブレム ５; |
2GN-21785-00-00 |
— | ||
|
8
|
8
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
8
|
8
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
9
|
9
2GN-21782-00-00
Emblem 2
ＵＲ |
2GN-21782-00-00 |
— | ||
|
10
|
10
2GN-21783-00-00
Emblem 3
ＵＲ |
2GN-21783-00-00 |
— | ||
|
11
|
11
54V-21778-00-00
Damper, Locating 1
ダンパ，ロケーテイング １; |
54V-21778-00-00 |
— | ||
|
12
|
12
54V-21779-00-00
Damper, Locating 2
ダンパ，ロケーテイング ２; |
54V-21779-00-00 |
— | ||
|
13
|
13
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
14
|
14
54V-2177M-00-00
Damper, Locating 3
ダンパ，ロケーテイング ３; |
54V-2177M-00-00 |
— | ||
|
15
|
15
54V-21784-40-00 Emblem 4ＵＲ |
54V-21784-40-00 |
US $8.50 |
||
