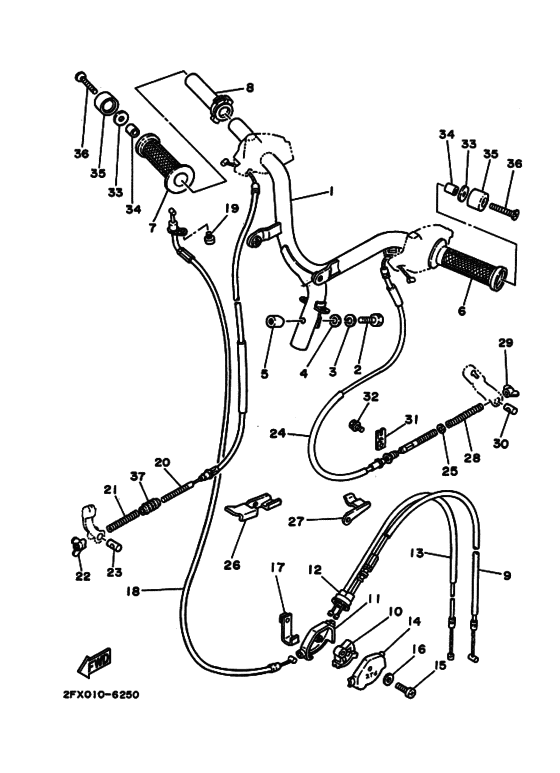

ｽﾃｱﾘﾝｸﾞﾊﾝﾄﾞﾙ. ｹｰﾌﾞﾙ-2 Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Maxim Yellow (MXY; 005F)
- Model code
- 2GN
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CJ50ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GN-26110-00-00
Handle Comp
ハンドルコンプリート; |
2GN-26110-00-00 |
— | ||
|
2
|
2
90109-08507-00
Bolt
|
90109-08507-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
4
|
4
2E9-26129-00-00 Washer |
2E9-26129-00-00 |
from US $2.98 |
||
|
5
|
5
90179-08354-00
Nut, Spec''l Shape
|
90179-08354-00 |
— | ||
|
6
|
6
2GN-26241-00-00 Gripグリツプ ; レフト |
2GN-26241-00-00 |
US $10.72 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
グリツプ ; レフト |
999-99999-99-00 |
— | ||
|
7
|
7
2GN-26242-00-00 Grip (Right)グリツプ ; ライト |
2GN-26242-00-00 |
US $16.58 |
||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
グリツプ ; ライト |
999-99999-99-00 |
— | ||
|
8
|
8
2GN-26243-00-00
Tube, Throttle Guide
チユーブ，スロツトルガイド; |
2GN-26243-00-00 |
— | ||
|
9
|
9
27V-26321-01-00 Cable, Pumpケーブル，ポンプ; |
27V-26321-01-00 |
US $24.67 |
||
|
10
|
10
5G3-26263-02-00 Piece, Connectingピース，コネクテイング; |
5G3-26263-02-00 |
from US $6.97 |
||
|
11
|
11
35R-26261-00-00
Connector, Cable
コネクタ，ケーブル; |
35R-26261-00-00 |
— | ||
|
12
|
12
54V-26266-00-00
Boot, Cylinder
ブーツ，シリンダ; |
54V-26266-00-00 |
— | ||
|
13
|
13
27V-26312-00-00
Cable, Throttle 2
ケーブル，スロツトル ２; |
27V-26312-00-00 |
— | ||
|
14
|
14
2T4-26262-02-00 Cap, Cble Connector (2T4-26262-キヤツプ，ケーブルコネクタ; |
2T4-26262-02-00 |
from US $9.28 |
||
|
15
|
15
98501-05025-00 Screw, Pan Head |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
15
|
15
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
16
|
16
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
16
|
16
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
14T-26398-00-00 Washer |
14T-26398-00-00 |
US $13.60 |
||
|
18
|
18
2EX-26311-00-00 Cable, Throttle 1ケーブル，スロツトル １; |
2EX-26311-00-00 |
US $24.24 |
||
|
19
|
19
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
19
|
19
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
20
|
20
2FX-26341-00-00 Wire, Brake 1ケーブル，ブレーキ; |
2FX-26341-00-00 |
US $29.96 |
||
|
21
|
21
90501-10513-00 Spring, Compression |
90501-10513-00 |
from US $1.70 |
||
|
22
|
22
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
22
|
22
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
23
|
23
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
24
|
24
2FX-26351-00-00
Cable, Brake
ケーブル，ブレーキ; |
2FX-26351-00-00 |
— | ||
|
25
|
25
90202-08175-00 Washer, Plateワツシヤ，プレート; |
90202-08175-00 |
from US $1.98 |
||
|
26
|
26
90465-30195-00
Clamp
|
90465-30195-00 |
— | ||
|
27
|
27
90465-30196-00 Clamp |
90465-30196-00 |
US $5.65 |
||
|
28
|
28
90501-123E4-00 Spring, Compression |
90501-123E4-00 |
from US $1.66 |
||
|
29
|
29
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
29
|
29
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
30
|
30
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
31
|
31
1YU-26393-00-00
Holder
|
1YU-26393-00-00 |
— | ||
| replacement | |||||
|
31
|
31
2EK-26393-00-00
Holder
|
2EK-26393-00-00 |
— | ||
|
32
|
32
90105-06138-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06138-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
958-17060-12-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-17060-12-00 |
from US $1.39 |
||
|
33
|
33
90201-081J7-00 Washer, Plateワツシヤ，プレート; |
90201-081J7-00 |
from US $1.98 |
||
| replacement | |||||
|
33
|
33
90201-08049-00 Washer, Plateワツシヤ，プレート; |
90201-08049-00 |
from US $1.98 |
||
|
34
|
34
90387-084E3-00
Collar
カラー; |
90387-084E3-00 |
— | ||
|
35
|
35
29L-26246-00-00 End, Grip |
29L-26246-00-00 |
from US $28.90 |
||
|
36
|
36
90151-06043-00
Screw, Countersunk
|
90151-06043-00 |
— | ||
| replacement | |||||
|
36
|
36
987-07060-45-00
Screw, Counter Sunk
|
987-07060-45-00 |
— | ||
|
37
|
37
14T-26342-00-00
Boot, Cable
ブーツ，ケーブル; |
14T-26342-00-00 |
— | ||
