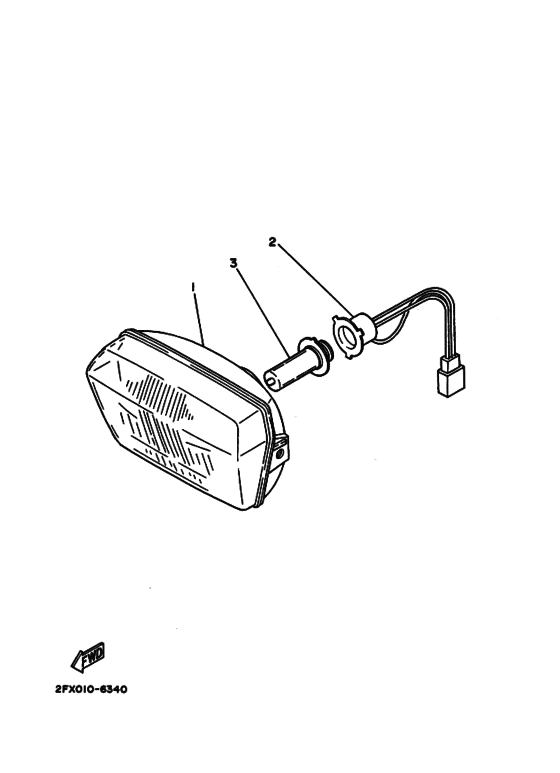

ﾍﾂﾄﾞﾗｲﾄ-2 Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2GN
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CJ50ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GN-84320-00-00
Lens Assy
|
2GN-84320-00-00 |
— | ||
|
2
|
2
54V-84340-00-00
Socket Cord Assy 1
ソケツトコードアセンブリ １; |
54V-84340-00-00 |
— | ||
|
3
|
3
2GN-84314-00-00
Bulb (12V30/30W) (2Gn-84314-00-
バルブ ; １２Ｖ−３０／３０Ｗ |
2GN-84314-00-00 |
— | ||
| replacement | |||||
|
3
|
3
2GN-84314-00-XX
Bulb (12V30/30W) (2Gn-84314-00-
バルブ ; １２Ｖ−３０／３０Ｗ |
2GN-84314-00-XX |
— | ||
