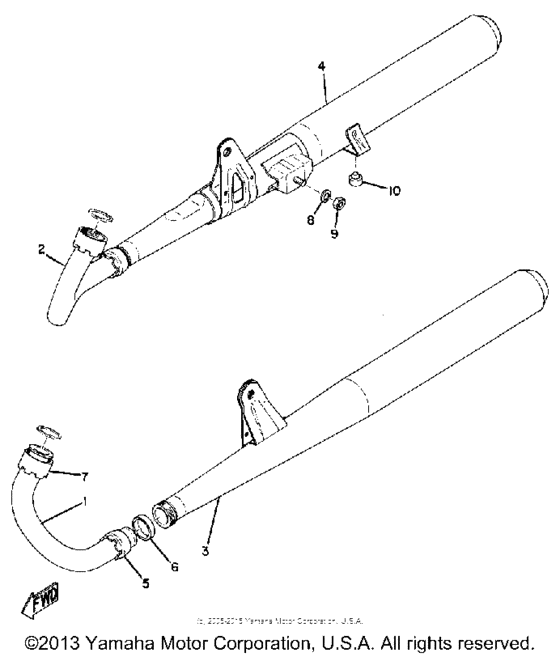

Muffler Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-14611-00-00
Pipe, Exhaust L
|
174-14611-00-00 |
— | ||
|
2
|
2
174-14621-00-00
Pipe, Exhaust R
|
174-14621-00-00 |
— | ||
|
3
|
3
293-14710-01-00
Muffler Assembly L
|
293-14710-01-00 |
— | ||
|
4
|
4
293-14720-01-00
Muffler Assembly R
|
293-14720-01-00 |
— | ||
|
5
|
5
132-14713-00-00 Nut, Muffler Joint |
132-14713-00-00 |
US $29.32 |
||
|
6
|
6
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
7
|
7
174-14612-01-00
Nut, Ring
|
174-14612-01-00 |
— | ||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
9
|
9
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
10
|
10
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
