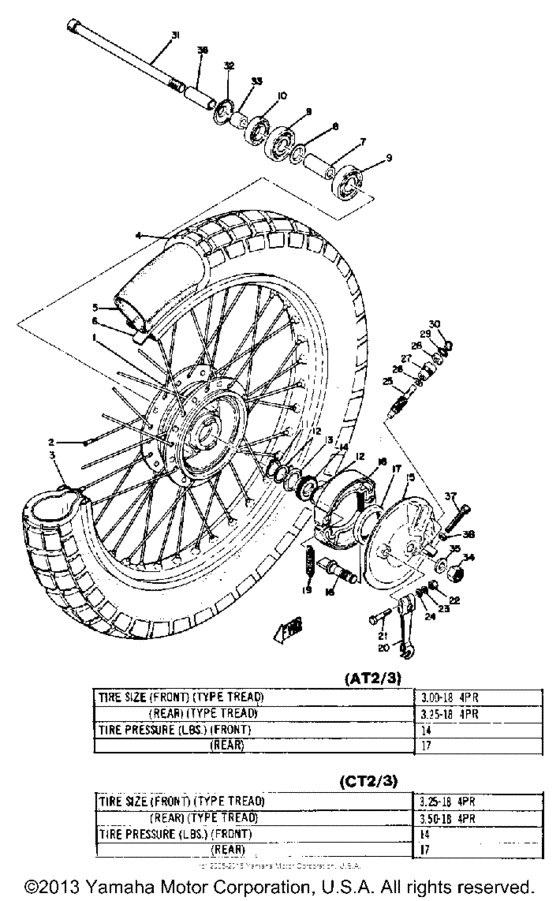

Front wheel Diagram Yamaha CT CT3
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CT3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-38 Hub, Front |
248-25111-00-38 |
US $196.19 |
||
| replacement | |||||
|
1
|
1
248-25111-10-00 Hub, Front |
248-25111-10-00 |
from US $98.98 |
||
|
1
|
1
248-25196-90-00
Spoke Set, Inner 1
|
248-25196-90-00 |
— | ||
|
1
|
1
248-25197-90-00
Spoke Set, Outer 1
|
248-25197-90-00 |
— | ||
|
2
|
2
248-25104-00-00 Spoke Set, Front |
248-25104-00-00 |
US $64.80 |
||
| replacement | |||||
|
2
|
2
248-25104-01-00 Spoke Set, Front |
248-25104-01-00 |
US $64.80 |
||
|
3
|
3
944-16180-18-00 Rim 1.60X181.60X18 |
944-16180-18-00 |
from US $98.06 |
||
|
3
|
3
944-14180-07-00
Rim (1.40-18)
1.40-18 |
944-14180-07-00 |
— | ||
| replacement | |||||
|
3
|
3
944-14185-45-00 Rim (1.40-18), Union Cycle1.40-18 |
944-14185-45-00 |
from US $89.94 |
||
|
4
|
4
941-30183-22-00
300X18 Yoko Y620
Y620 |
941-30183-22-00 |
— | ||
|
4
|
4
941-32183-20-00
325X18 Yoko Y620
Y620 |
941-32183-20-00 |
— | ||
|
5
|
5
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
7
|
7
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
9
|
9
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
9
|
9
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
10
|
10
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
11
|
11
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
12
|
12
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
13
|
13
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
14
|
14
248-25135-00-00 Gear, Drive |
248-25135-00-00 |
US $49.46 |
||
|
14
|
14
301-25135-00-00 Gear, Drive |
301-25135-00-00 |
US $31.03 |
||
|
15
|
15
315-25121-00-00
Plate, Brake Shoe
|
315-25121-00-00 |
— | ||
|
16
|
16
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
17
|
17
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
18
|
18
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
18
|
18
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
19
|
19
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
20
|
20
137-25155-00-00 Lever, Camshaft 1 |
137-25155-00-00 |
from US $19.84 |
||
|
21
|
21
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
21
|
21
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
214-25138-00-00 Gear, Meter |
214-25138-00-00 |
from US $22.34 |
||
|
25
|
25
301-25138-00-00 Gear, Meter |
301-25138-00-00 |
US $26.07 |
||
|
26
|
26
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
27
|
27
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
28
|
28
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
29
|
29
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
29
|
29
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
30
|
30
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
31
|
31
401-25181-01-00 Axle, Wheel |
401-25181-01-00 |
from US $55.68 |
||
|
32
|
32
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
33
|
33
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
34
|
34
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
34
|
34
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
35
|
35
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
36
|
36
90387-12100-00
Collar
|
90387-12100-00 |
— | ||
|
37
|
37
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
38
|
38
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
