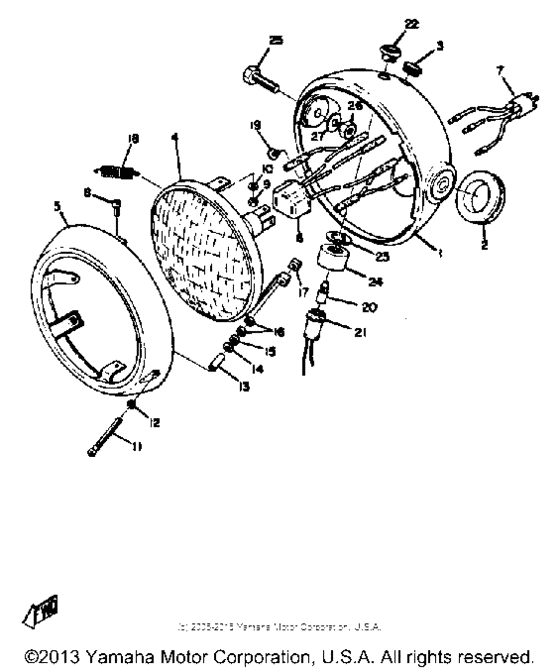

Headlight Diagram Yamaha CT CT3
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CT3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-84130-61-52
Body Assembly, Headlight
|
214-84130-61-52 |
— | ||
|
1
|
1
214-84130-61-63
Body Assembly, Headlight
|
214-84130-61-63 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $2.99 |
||
|
2
|
2
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
3
|
3
214-84154-60-00
Grommet
|
214-84154-60-00 |
— | ||
|
4
|
4
251-84120-61-00
Lens Assembly
|
251-84120-61-00 |
— | ||
|
5
|
5
233-84115-60-00
Rim, Headlight
|
233-84115-60-00 |
— | ||
|
6
|
6
261-84312-61-00
Socket, Cord
|
261-84312-61-00 |
— | ||
|
7
|
7
214-84159-61-00
Cord, Headlight
|
214-84159-61-00 |
— | ||
|
8
|
8
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
12
|
12
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
13
|
13
233-84133-60-00
Collar, Screw
|
233-84133-60-00 |
— | ||
|
14
|
14
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
15
|
15
132-84328-60-00
Spacer
|
132-84328-60-00 |
— | ||
|
16
|
16
953-01047-00-00
Nut
|
953-01047-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95380-04700-00 Nut(6L4) |
95380-04700-00 |
from US $1.56 |
||
|
17
|
17
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
18
|
18
132-84335-60-00
Spring
|
132-84335-60-00 |
— | ||
|
19
|
19
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
20
|
20
104-83517-10-00 Bulb |
104-83517-10-00 |
from US $4.53 |
||
|
21
|
21
256-84301-61-00
Pilot Light Assembly 1
|
256-84301-61-00 |
— | ||
|
22
|
22
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
23
|
23
929-01123-00-00
Washer, In.tooth
|
929-01123-00-00 |
— | ||
|
24
|
24
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
25
|
25
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
