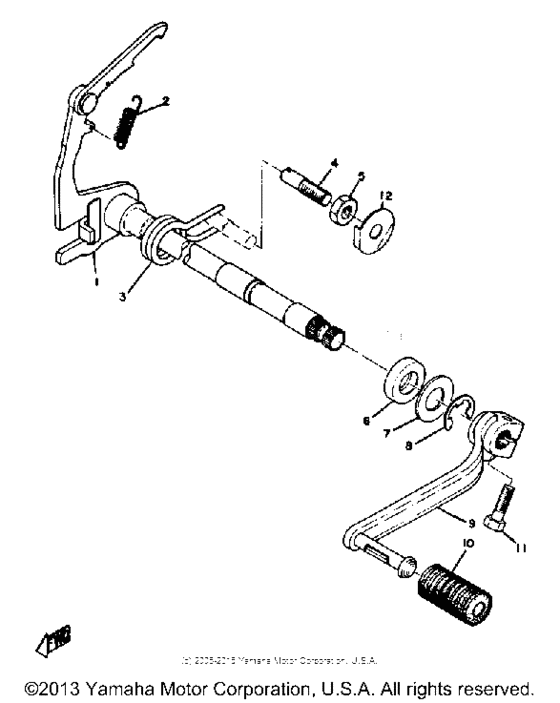

Shift shaft Diagram Yamaha CT CT3
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CT3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-18101-02-00 Shift Shaft Asy. 1 |
248-18101-02-00 |
from US $55.60 |
||
| replacement | |||||
|
1
|
1
3M5-18101-01-00 element |
3M5-18101-01-00 |
from US $87.26 |
||
|
2
|
2
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
3
|
3
90508-32207-00 Spring, Torsion (132-18124-00)132-18124-00 |
90508-32207-00 |
from US $8.50 |
||
|
4
|
4
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
5
|
5
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
6
|
6
93109-14010-00 Oil Seal, Sdo-Type |
93109-14010-00 |
from US $5.74 |
||
|
7
|
7
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
8
|
8
99001-12600-00 Circlip |
99001-12600-00 |
from US $1.56 |
||
|
9
|
9
367-18111-00-00 Pedal Shift |
367-18111-00-00 |
from US $39.93 |
||
|
9
|
9
173-18111-01-93
Pedal, Shift
|
173-18111-01-93 |
— | ||
|
10
|
10
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
12
|
12
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
