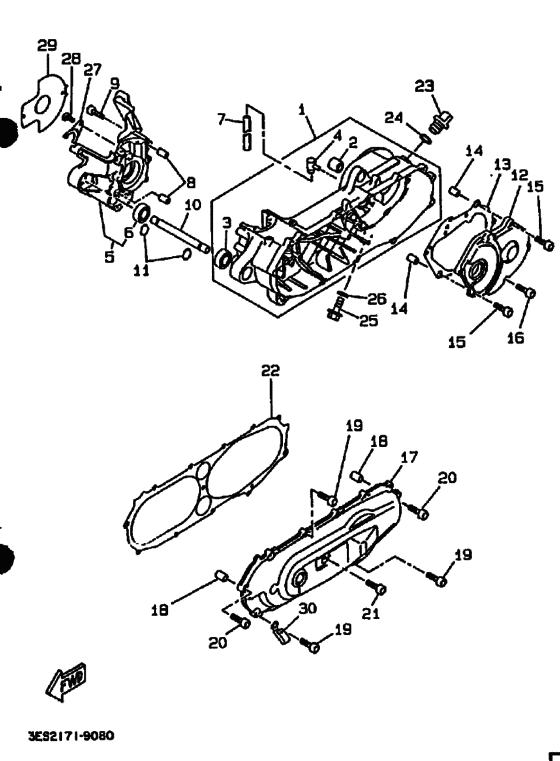

Crankcase Diagram Yamaha CW50 BW'S
- Year
- 1989
- Colour
- Silky White (SW; 00GE)
- Model code
- 3ES2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ES-15110-00-00
Crankcase Assembly
|
3ES-15110-00-00 |
— | ||
|
2
|
2
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $9.44 |
||
|
3
|
3
93306-00201-00 Brg,r-B 6002Rs 32Mm 30G Ky |
93306-00201-00 |
from US $25.64 |
||
|
4
|
4
3ES-15371-00-00 Breather |
3ES-15371-00-00 |
from US $9.07 |
||
|
5
|
5
3AA-15120-00-00
Crankcase Assy 2
|
3AA-15120-00-00 |
— | ||
| replacements | |||||
|
5
|
5
3AA-15120-02-00
Crankcase Assembly 2
|
3AA-15120-02-00 |
— | ||
|
5
|
5
3AA-15120-01-00
Crankcase Assy 2
|
3AA-15120-01-00 |
— | ||
|
6
|
6
93306-00201-00 Brg,r-B 6002Rs 32Mm 30G Ky |
93306-00201-00 |
from US $25.64 |
||
|
7
|
7
90446-13311-00 Hose |
90446-13311-00 |
from US $1.40 |
||
| replacement | |||||
|
7
|
7
90446-13803-00 Hose |
90446-13803-00 |
from US $1.37 |
||
|
8
|
8
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
8
|
8
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
9
|
9
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
9
|
9
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
9
|
9
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
9
|
9
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
10
|
10
3AA-15317-00-00 Spacer, Eng Mount |
3AA-15317-00-00 |
US $5.17 |
||
|
11
|
11
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
12
|
12
3AA-15421-00-00 Cover, Crankcase R |
3AA-15421-00-00 |
from US $59.47 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3AA-15461-00-00 Gasket,crcs Cvr 2 |
3AA-15461-00-00 |
from US $10.44 |
||
| replacement | |||||
|
13
|
13
3AA-15461-01-00 Gasket, Crankcase Cover 2 |
3AA-15461-01-00 |
from US $10.01 |
||
|
14
|
14
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
15
|
15
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
15
|
15
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
15
|
15
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
15
|
15
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
16
|
16
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
17
|
17
3ES-W1541-00-00
Crankcase Cover Assembly 1
|
3ES-W1541-00-00 |
— | ||
|
18
|
18
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
18
|
18
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
18
|
18
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
19
|
19
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
20
|
20
913-11060-35-00
Bolt, Hexagon Socket Head
|
913-11060-35-00 |
— | ||
| replacement | |||||
|
20
|
20
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
21
|
21
91311-06045-00 Bolt, Hexagon Socket Head |
91311-06045-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
91314-06045-00 Bolt, Hexagon Socket Head |
91314-06045-00 |
from US $1.42 |
||
|
22
|
22
3AA-15451-00-00 Gasket Cros Cover |
3AA-15451-00-00 |
from US $14.31 |
||
| replacement | |||||
|
22
|
22
3AA-15451-01-00 Gasket, Crankcase Cover 1 |
3AA-15451-01-00 |
from US $14.31 |
||
|
23
|
23
4J2-15363-00-00 Plug, Oil |
4J2-15363-00-00 |
from US $2.41 |
||
| replacement | |||||
|
23
|
23
4J2-15363-10-00 Plug, Oil |
4J2-15363-10-00 |
from US $2.36 |
||
|
24
|
24
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
24
|
24
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
25
|
25
95801-08016-00 Bolt, Flange (8A7) |
95801-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
25
|
25
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
|
25
|
25
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
26
|
26
90430-08206-00 Gasket |
90430-08206-00 |
from US $1.84 |
||
|
27
|
27
1HV-15128-00-00
Holder
|
1HV-15128-00-00 |
— | ||
|
28
|
28
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
29
|
29
3AA-15462-00-00 Gaskek,crcs Cover |
3AA-15462-00-00 |
from US $3.92 |
||
| replacement | |||||
|
29
|
29
3AA-15462-01-00 Gasket, Crankcase Cover 3 |
3AA-15462-01-00 |
from US $4.82 |
||
|
30
|
30
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
