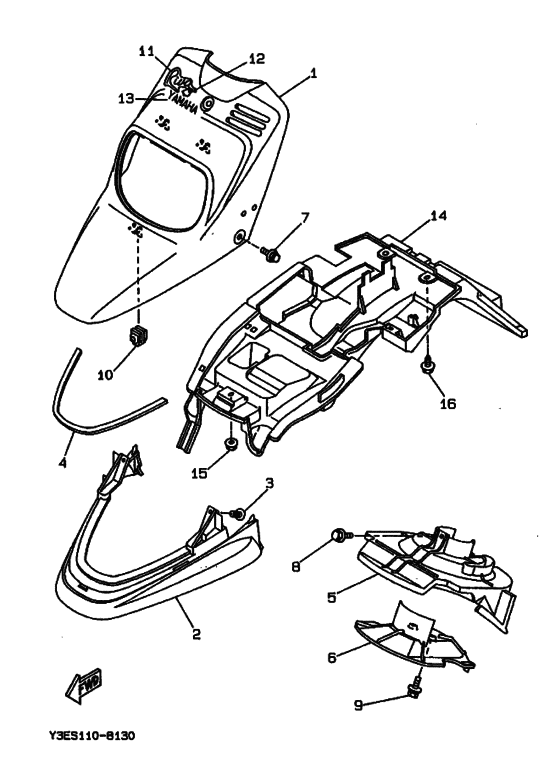

Fender Diagram Yamaha CW50 BW'S
- Year
- 1989
- Colour
- Silky White (SW; 00GE)
- Model code
- 3ES2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ES-21511-00-GE
Fender, Front
SILKY WHITE |
3ES-21511-00-GE |
— | ||
| replacement | |||||
|
1
|
1
3AA-21511-00-GE
Fender, Front
SILKY WHITE |
3AA-21511-00-GE |
— | ||
|
2
|
2
3AA-21551-00-00
Over, Fender
FARAWAY BLUE |
3AA-21551-00-00 |
— | ||
|
3
|
3
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
3
|
3
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
4
|
4
3AA-27482-00-00 Damper |
3AA-27482-00-00 |
from US $4.39 |
||
| replacement | |||||
|
4
|
4
3AJ-28371-00-00 Damper |
3AJ-28371-00-00 |
from US $4.39 |
||
|
5
|
5
3AA-21552-00-00
Fender, Inner
|
3AA-21552-00-00 |
— | ||
|
6
|
6
3AA-21553-00-00
Fender Inner 2
|
3AA-21553-00-00 |
— | ||
|
7
|
7
90119-06066-00 Bolt, With Washer |
90119-06066-00 |
US $15.46 |
||
| replacement | |||||
|
7
|
7
90119-06926-00 Bolt H/h W/w (Eu0) |
90119-06926-00 |
US $15.46 |
||
|
8
|
8
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
8
|
8
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
9
|
9
90119-06085-00 Bolt, With Washer |
90119-06085-00 |
from US $2.41 |
||
| replacements | |||||
|
9
|
9
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
9
|
9
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
|
10
|
10
35R-26294-00-00 Nut 1 |
35R-26294-00-00 |
from US $6.31 |
||
|
11
|
11
1UV-21781-00-00
Emblem 1
|
1UV-21781-00-00 |
— | ||
|
12
|
12
2HE-2839H-10-00
Emblem 1
|
2HE-2839H-10-00 |
— | ||
|
13
|
13
99234-00020-00 Emblem, Yamaha (Black) |
99234-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
13
|
13
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.74 |
||
|
14
|
14
3ES-21629-00-00
Guard, Mud
|
3ES-21629-00-00 |
— | ||
|
15
|
15
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
16
|
16
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
