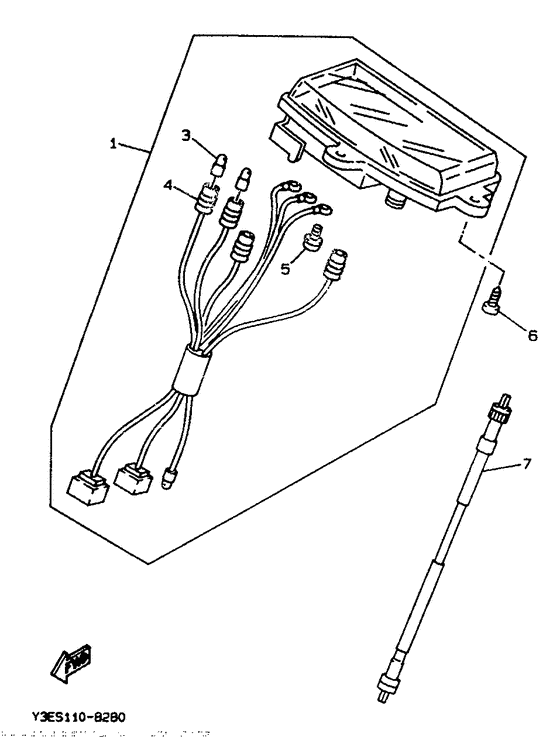

Meter Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BX2
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-H3510-00-00
Speedometer Assy
|
3VL-H3510-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3VL-H3510-01-00
Speedometer Assy
|
3VL-H3510-01-00 |
— | ||
|
03
|
03
3UP-H4347-00-00
Bulb
|
3UP-H4347-00-00 |
— | ||
| replacements | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
3VL-83573-00-00
Socket Cord Assy 3
|
3VL-83573-00-00 |
— | ||
|
05
|
05
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
06
|
06
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
07
|
07
3VL-H3550-00-00
Speedometer Cable
|
3VL-H3550-00-00 |
— | ||
