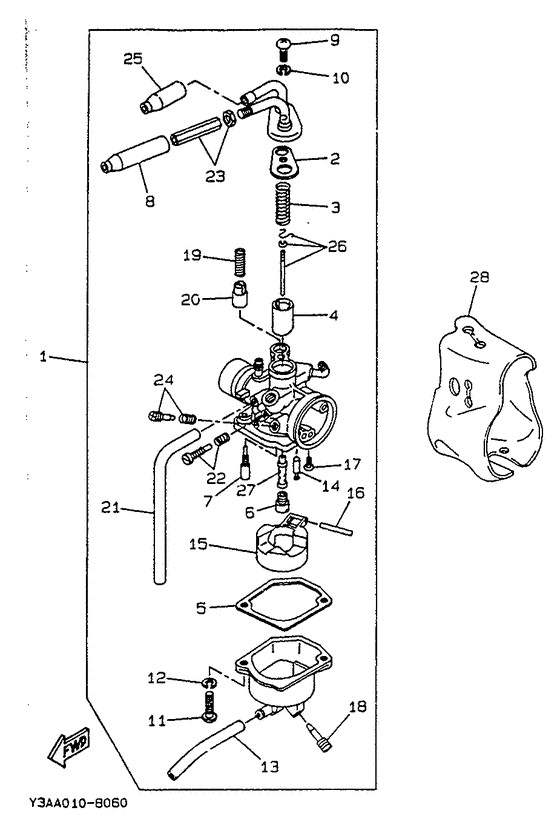

Carburetor Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BY-14301-00-00
Carburetor Assy 1
|
4BY-14301-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4BY-14301-01-00
Carburetor Ass'y 1
|
4BY-14301-01-00 |
— | ||
|
02
|
02
1YU-14126-00-00 Gasket |
1YU-14126-00-00 |
from US $7.23 |
||
|
03
|
03
1YU-14331-00-00 Spring, Throttle Valve |
1YU-14331-00-00 |
from US $3.59 |
||
|
04
|
04
14T-14312-30-00 Valve, Throttle 1 |
14T-14312-30-00 |
US $36.13 |
||
|
05
|
05
1YU-14384-00-00 Gasket, Float Chamber |
1YU-14384-00-00 |
from US $11.16 |
||
|
06
|
06
14T-14343-43-00
Jet, Main
|
14T-14343-43-00 |
— | ||
|
07
|
07
1YU-14353-25-00 Pilot Jet (50)Jet, pilot ( 50) |
1YU-14353-25-00 |
US $6.50 |
||
|
08
|
08
1UV-14169-00-00 Cap |
1UV-14169-00-00 |
from US $13.70 |
||
|
09
|
09
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
10
|
10
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
3AA-14349-00-00 Pipe |
3AA-14349-00-00 |
from US $4.64 |
||
|
14
|
14
14T-14392-01-00 Value, Needle |
14T-14392-01-00 |
from US $39.78 |
||
|
15
|
15
1YU-14385-00-00 Float |
1YU-14385-00-00 |
from US $75.85 |
||
|
16
|
16
14T-14386-00-00 Pin, Float |
14T-14386-00-00 |
from US $7.79 |
||
|
17
|
17
98501-03006-00 Screw, Pan Head |
98501-03006-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.35 |
||
|
18
|
18
14T-14323-00-00 Screw |
14T-14323-00-00 |
from US $10.71 |
||
| replacement | |||||
|
18
|
18
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $13.86 |
||
|
19
|
19
1YU-14335-00-00 Spring, Plunger |
1YU-14335-00-00 |
from US $3.68 |
||
|
20
|
20
1YU-14371-00-00 Plunger, Starter |
1YU-14371-00-00 |
from US $17 |
||
|
21
|
21
56R-14196-00-00 Pipe, Over Flow 1 |
56R-14196-00-00 |
from US $4.11 |
||
|
22
|
22
1YU-14103-00-00 Throttle Screw Set |
1YU-14103-00-00 |
from US $23.66 |
||
|
23
|
23
1UV-14106-00-00 Cable Adjust Screw Set |
1UV-14106-00-00 |
US $40.34 |
||
|
24
|
24
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $13.86 |
||
|
25
|
25
14T-14169-00-00 Cap |
14T-14169-00-00 |
from US $10.01 |
||
|
26
|
26
3AA-1490J-00-00 Needle Set |
3AA-1490J-00-00 |
from US $14.99 |
||
|
27
|
27
2XX-14341-00-00 Nozzle, Main |
2XX-14341-00-00 |
US $26.42 |
||
|
28
|
28
1YU-14283-01-00 Cover, Carburetor 1 |
1YU-14283-01-00 |
from US $17 |
||
