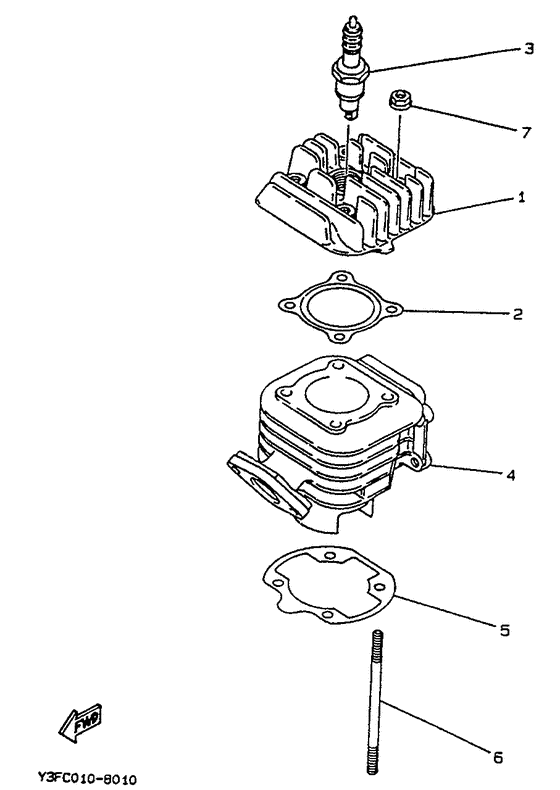

Cylinder Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BY-E1111-00-00
Head, Cylinder 1
|
4BY-E1111-00-00 |
— | ||
|
02
|
02
3VL-E1181-00-00 Gasket, Cylinder Head |
3VL-E1181-00-00 |
from US $12.21 |
||
|
03
|
03
94700-00110-00
Plug, Spark
|
94700-00110-00 |
— | ||
| replacement | |||||
|
03
|
03
947-01001-10-00 Plug, Spark (Br7Hs) |
947-01001-10-00 |
US $7.08 |
||
|
04
|
04
4BY-E1311-00-00
Cylinder 1
|
4BY-E1311-00-00 |
— | ||
|
05
|
05
3VL-E1351-00-00 Gasket, Cylinder |
3VL-E1351-00-00 |
from US $9.29 |
||
|
06
|
06
90116-06418-00 Bolt, Stud |
90116-06418-00 |
from US $1.81 |
||
|
07
|
07
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
