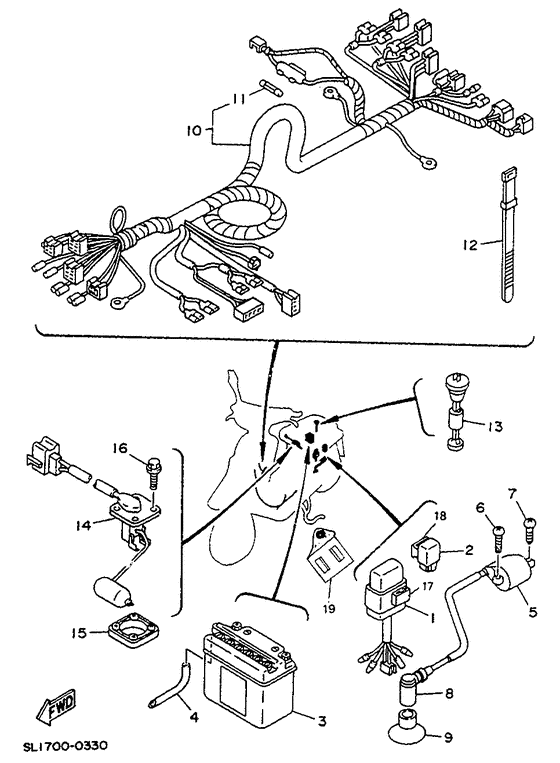

Electrical Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-01-00
C.d.i. Unit Assy
|
3KJ-85540-01-00 |
— | ||
| replacements | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
|
02
|
02
27V-81940-02-00
Starter Relay Assy
|
27V-81940-02-00 |
— | ||
| replacement | |||||
|
02
|
02
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
03
|
03
3VL-H2110-00-00
Battery Assy
|
3VL-H2110-00-00 |
— | ||
| replacements | |||||
|
03
|
03
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
03
|
03
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
03
|
03
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
04
|
04
90445-083F2-00 Hose (L620) |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
04
|
04
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
05
|
05
3KJ-82310-00-00
Ignition Coil Assy
|
3KJ-82310-00-00 |
— | ||
| replacements | |||||
|
05
|
05
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
05
|
05
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
05
|
05
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
06
|
06
90149-06262-00 Screw |
90149-06262-00 |
from US $1.77 |
||
|
07
|
07
97701-60525-00 Screw, Tapping |
97701-60525-00 |
from US $2.13 |
||
| replacement | |||||
|
07
|
07
97707-60525-00 Screw, Tapping |
97707-60525-00 |
from US $2.13 |
||
|
08
|
08
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
09
|
09
3KJ-82372-00-00 Seal, Plug Cap |
3KJ-82372-00-00 |
from US $4.11 |
||
|
10
|
10
4BY-82590-00-00
Wire Harness Assy
|
4BY-82590-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
53L-85720-00-00
Oil Level Gauge Assy
|
53L-85720-00-00 |
— | ||
| replacements | |||||
|
13
|
13
53L-85720-02-00
Oil Level Gauge Assy
|
53L-85720-02-00 |
— | ||
|
13
|
13
3VL-H5720-10-00
Oil Level Gauge Assy
|
3VL-H5720-10-00 |
— | ||
|
13
|
13
53L-85720-10-00 Oil Level Gauge Assy |
53L-85720-10-00 |
from US $32.16 |
||
|
14
|
14
3VL-85752-00-00
Sender Unit Assy
|
3VL-85752-00-00 |
— | ||
| replacement | |||||
|
14
|
14
3VL-H5752-00-00
Sender
|
3VL-H5752-00-00 |
— | ||
|
15
|
15
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
16
|
16
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
17
|
17
35L-85546-00-00
Band
|
35L-85546-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
18
|
18
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
19
|
19
3WW-H553A-00-00
Stay Unit
|
3WW-H553A-00-00 |
— | ||
