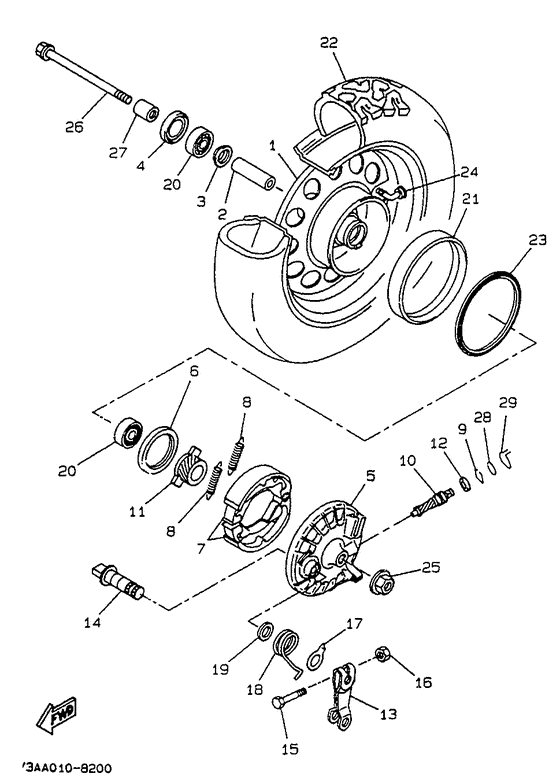

Front wheel Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-25180-00-P1
Front Wheel Comp
|
3VL-25180-00-P1 |
— | ||
|
02
|
02
90560-10347-00 Spacer |
90560-10347-00 |
US $7.07 |
||
|
03
|
03
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.47 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
3AA-25121-00-P1
Plate, Brake Shoe
|
3AA-25121-00-P1 |
— | ||
|
06
|
06
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.21 |
||
|
07
|
07
4BX-W2536-00-00 Brake Shoe Kit |
4BX-W2536-00-00 |
from US $19.49 |
||
| replacement | |||||
|
07
|
07
4BX-W253E-00-00 Brake Shoe Kit |
4BX-W253E-00-00 |
from US $22.36 |
||
|
08
|
08
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
09
|
09
2T4-25137-00-00 Ring, Stop |
2T4-25137-00-00 |
from US $3.68 |
||
|
10
|
10
3AA-25138-00-00 Gear, Meter |
3AA-25138-00-00 |
US $15.55 |
||
|
11
|
11
3AA-25135-00-00
Gear, Drive
|
3AA-25135-00-00 |
— | ||
|
12
|
12
90201-064L6-00 Washer, Plate |
90201-064L6-00 |
from US $1.70 |
||
|
13
|
13
3E1-25155-00-00 Lever, Camshaft 1 |
3E1-25155-00-00 |
US $19.39 |
||
|
14
|
14
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
14
|
14
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
15
|
15
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
16
|
16
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
18
|
18
90508-26393-00 Spring, Torsion (K17) |
90508-26393-00 |
US $7.18 |
||
|
19
|
19
36F-25159-00-00 Seal, Camshaft |
36F-25159-00-00 |
US $3.04 |
||
|
20
|
20
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
21
|
21
3VL-F5185-00-00 Ring 1 |
3VL-F5185-00-00 |
US $32.81 |
||
|
22
|
22
94112-10805-00
Tire
|
94112-10805-00 |
— | ||
|
23
|
23
3VL-F514A-00-00
Ring, Wheel 1
|
3VL-F514A-00-00 |
— | ||
|
24
|
24
3VL-F5170-00-00
Air Valve Assy
|
3VL-F5170-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
25
|
25
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
25
|
25
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
26
|
26
3AA-25181-00-00 Axle, Wheel |
3AA-25181-00-00 |
from US $9.63 |
||
|
27
|
27
90387-102V7-00 Collar |
90387-102V7-00 |
US $14.31 |
||
|
28
|
28
93210-10010-00 O-Ring |
93210-10010-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
29
|
29
2E9-25137-01-00 Ring, Stop |
2E9-25137-01-00 |
from US $3.40 |
||
