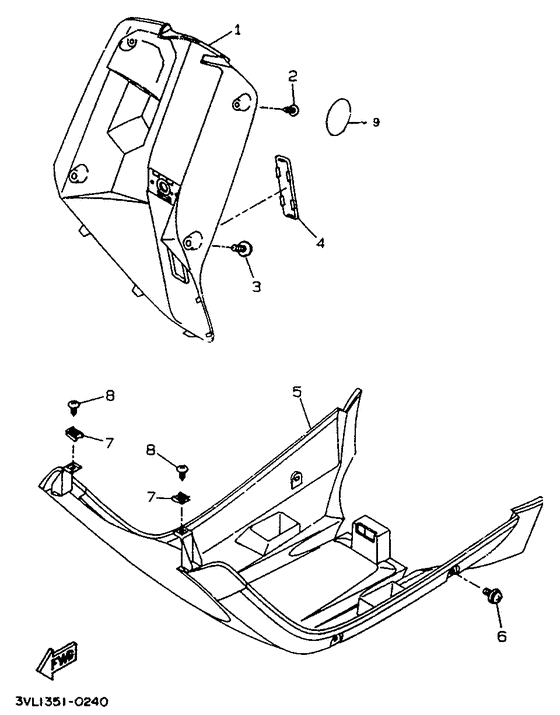

Leg shield Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F8311-10-00 Leg Shield 1Leg shield 1 black For b2 or bp |
3VL-F8311-10-00 |
US $256.61 |
||
| replacement | |||||
|
01
|
01
3VL-F8311-40-33 Leg Shield YbFor b2 or bp |
3VL-F8311-40-33 |
US $256.61 |
||
|
02
|
02
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
02
|
02
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
02
|
02
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
03
|
03
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.77 |
||
|
04
|
04
14T-28349-40-00 CapFor b2 or bp |
14T-28349-40-00 |
from US $7.37 |
||
| replacement | |||||
|
04
|
04
3WV-F8349-10-00 CapFor b2 or bp |
3WV-F8349-10-00 |
from US $8.08 |
||
|
05
|
05
3VL-F8385-10-00 Cover, LowerFor b2 or bp |
3VL-F8385-10-00 |
US $46.22 |
||
|
06
|
06
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.77 |
||
|
07
|
07
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
08
|
08
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
08
|
08
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
09
|
09
3VL-F8315-10-00 EmblemFor b2 or bp |
3VL-F8315-10-00 |
US $4.14 |
||
