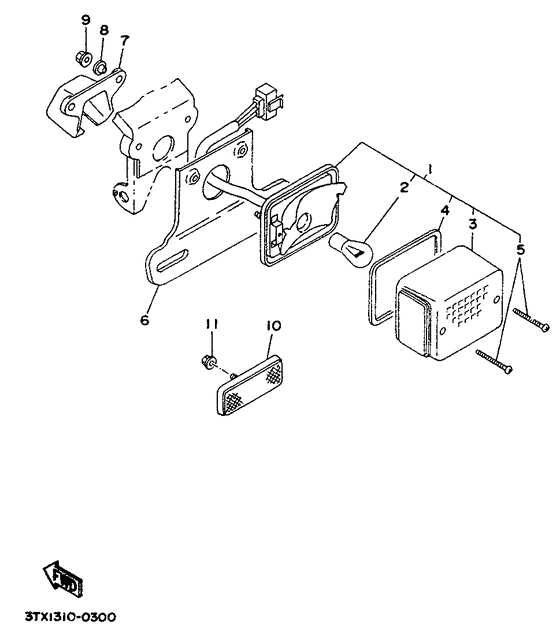

Taillight Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4BY2
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2KG-84710-E0-00
Taillight Unit Assy
|
2KG-84710-E0-00 |
— | ||
|
02
|
02
31L-84714-00-00
Bulb (12V-21/5W)
|
31L-84714-00-00 |
— | ||
| replacements | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $5.28 |
||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
|
03
|
03
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
03
|
03
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
04
|
04
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
04
|
04
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
05
|
05
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
05
|
05
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
05
|
05
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
06
|
06
3ES-84751-00-00 Bracket, Licence |
3ES-84751-00-00 |
US $64.12 |
||
|
07
|
07
3L8-84544-00-00 Cover |
3L8-84544-00-00 |
from US $2.94 |
||
|
08
|
08
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
08
|
08
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
09
|
09
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
09
|
09
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
10
|
10
3NC-H5130-00-00 Rear Reflector Assy |
3NC-H5130-00-00 |
US $34.71 |
||
|
11
|
11
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
