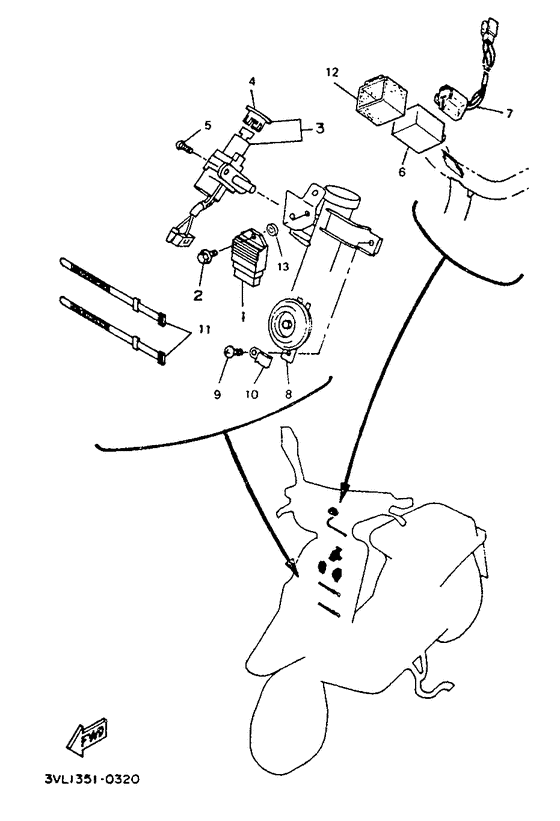

Electrical 1 Diagram Yamaha CW50 BW'S
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4GP2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-81960-00-00 Rectifier & Regulator Assy |
3AA-81960-00-00 |
from US $92.84 |
||
| replacements | |||||
|
01
|
01
4VV-H1960-01-00 Rectifier Regulator Assy |
4VV-H1960-01-00 |
US $208.94 |
||
|
01
|
01
3KJ-81960-11-00 Rectifier & Regulator Assy |
3KJ-81960-11-00 |
from US $92.84 |
||
|
02
|
02
4BY-H1826-00-00
Bolt
|
4BY-H1826-00-00 |
— | ||
|
03
|
03
3VL-H2021-12-00
Key Set
|
3VL-H2021-12-00 |
— | ||
| replacement | |||||
|
03
|
03
5JH-H2021-00-00 Main,switch+Seat Lock Assy |
5JH-H2021-00-00 |
US $250.51 |
||
|
04
|
04
3VL-H251J-00-00 Ring |
3VL-H251J-00-00 |
US $7.64 |
||
| replacement | |||||
|
04
|
04
1S0-H2552-00-00 Cap, Switch |
1S0-H2552-00-00 |
US $10.76 |
||
|
05
|
05
90109-06851-00 Bolt |
90109-06851-00 |
from US $2.13 |
||
|
06
|
06
3VL-H3350-00-00 Flasher Relay Assy |
3VL-H3350-00-00 |
US $85.73 |
||
|
07
|
07
4CA-H2509-00-00 Wire, Sub Lead |
4CA-H2509-00-00 |
US $25.06 |
||
|
08
|
08
3VL-83371-00-00 Horn |
3VL-83371-00-00 |
from US $40.58 |
||
| replacements | |||||
|
08
|
08
5SB-H3371-00-00
Horn
|
5SB-H3371-00-00 |
— | ||
|
08
|
08
4CU-H3371-03-00 Horn |
4CU-H3371-03-00 |
US $53.59 |
||
|
08
|
08
35R-83371-30-00 Horn |
35R-83371-30-00 |
from US $40.58 |
||
|
09
|
09
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
09
|
09
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
4KH-H3936-00-00 Band, Switch Cord |
4KH-H3936-00-00 |
from US $3.68 |
||
| replacement | |||||
|
10
|
10
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
11
|
11
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
12
|
12
3VL-H5546-00-00
Band
|
3VL-H5546-00-00 |
— | ||
|
13
|
13
4BY-H338W-01-00
Collar
|
4BY-H338W-01-00 |
— | ||
