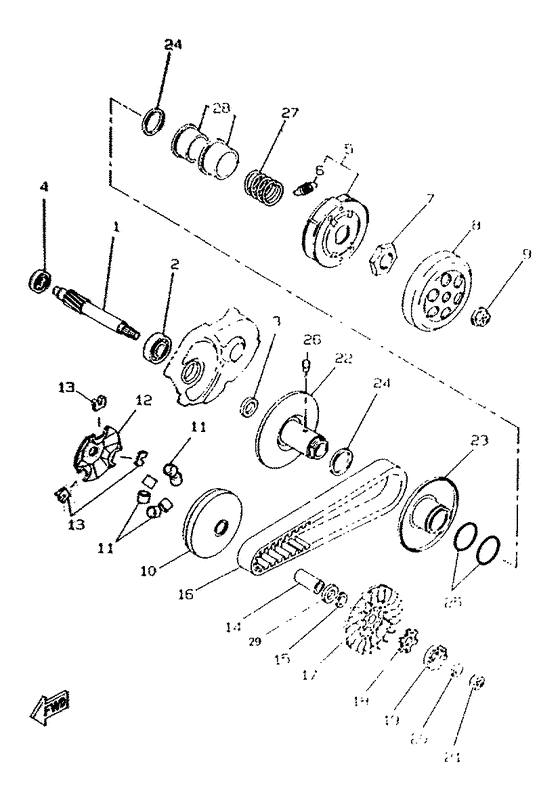

Clutch Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-E6111-00-00 Gear, Primary Drive |
3VL-E6111-00-00 |
from US $114.12 |
||
|
02
|
02
93308-20301-00
Bearing
|
93308-20301-00 |
— | ||
|
03
|
03
93102-17342-00 Oil Seal |
93102-17342-00 |
from US $12.04 |
||
| replacements | |||||
|
03
|
03
93102-17467-00 Oil Seal |
93102-17467-00 |
from US $12.04 |
||
|
03
|
03
931-02178-03-00 Oil Seal (Mio Al115S) |
931-02178-03-00 |
from US $3.42 |
||
|
04
|
04
93306-20006-00 Bearing (B6200) |
93306-20006-00 |
from US $10.63 |
||
| replacement | |||||
|
04
|
04
93306-20009-00 Bearing (3R0) |
93306-20009-00 |
from US $12.62 |
||
|
05
|
05
3VL-E6620-01-00
Clutch Carrier Assy
|
3VL-E6620-01-00 |
— | ||
|
06
|
06
3VL-E6626-00-00 Spring, Clutch Weig |
3VL-E6626-00-00 |
US $10.84 |
||
|
07
|
07
90179-28415-00 Nut |
90179-28415-00 |
from US $7.94 |
||
|
08
|
08
24G-16611-03-00 Clutch Housing Comp |
24G-16611-03-00 |
from US $68.94 |
||
|
09
|
09
90179-10370-00 Nut, Specl Shape |
90179-10370-00 |
from US $6.88 |
||
|
10
|
10
3VL-E7620-02-00
Primary Sliding Sheave Comp
|
3VL-E7620-02-00 |
— | ||
|
11
|
11
4FG-E7632-00-00
Weight
|
4FG-E7632-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4B0-E7632-00-00
Weight
|
4B0-E7632-00-00 |
— | ||
|
12
|
12
3VL-E7623-00-00 Cam |
3VL-E7623-00-00 |
from US $11.32 |
||
| replacement | |||||
|
12
|
12
4B0-E7623-00-00 Cam |
4B0-E7623-00-00 |
US $19.75 |
||
|
13
|
13
3VL-E7653-00-00 Slider |
3VL-E7653-00-00 |
from US $4.43 |
||
| replacement | |||||
|
13
|
13
4B0-E7653-00-00 Slider |
4B0-E7653-00-00 |
from US $6.39 |
||
|
14
|
14
90387-135U9-00 Collar |
90387-135U9-00 |
from US $7.51 |
||
|
15
|
15
90201-133M8-00 Washer, Plate |
90201-133M8-00 |
from US $1.60 |
||
|
16
|
16
3AA-17641-00-00
V-Belt
|
3AA-17641-00-00 |
— | ||
| replacement | |||||
|
16
|
16
5RN-E7641-10-00 V-Belt |
5RN-E7641-10-00 |
US $64.42 |
||
|
17
|
17
3VL-E7611-00-00 Sheave, Primary Fi |
3VL-E7611-00-00 |
from US $53.21 |
||
| replacement | |||||
|
17
|
17
5WW-E7611-10-00 Sheave, Primary Fixed |
5WW-E7611-10-00 |
US $75.04 |
||
|
18
|
18
90214-13055-00 Washer, Claw |
90214-13055-00 |
from US $9.21 |
||
|
19
|
19
3VL-E5657-00-00 Clutch, Oneway |
3VL-E5657-00-00 |
US $29.92 |
||
| replacement | |||||
|
19
|
19
3KJ-15657-00-00 Clutch, Oneway |
3KJ-15657-00-00 |
from US $19.13 |
||
|
20
|
20
90208-10012-00 Washer, Conical Spring |
90208-10012-00 |
from US $1.52 |
||
|
21
|
21
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
21
|
21
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
|
22
|
22
3GF-17660-02-00 Secondary Fixed Sheave Comp |
3GF-17660-02-00 |
from US $132.22 |
||
| replacement | |||||
|
22
|
22
3AA-17660-03-00 Secondary Fixed Sheave Comp |
3AA-17660-03-00 |
from US $132.22 |
||
|
23
|
23
3WG-17608-00-00 Secondary Sliding Sheave |
3WG-17608-00-00 |
from US $73.57 |
||
| replacement | |||||
|
23
|
23
3AA-17670-01-00 Secondary Sliding Sheave |
3AA-17670-01-00 |
from US $76.88 |
||
|
24
|
24
93109-33052-00 Oil Seal |
93109-33052-00 |
from US $15.64 |
||
|
25
|
25
93210-38687-00 O-Ring |
93210-38687-00 |
from US $2.83 |
||
| replacement | |||||
|
25
|
25
93210-384A6-00 O-Ring |
93210-384A6-00 |
from US $4.96 |
||
|
26
|
26
24G-17664-00-00 Pin, Guide |
24G-17664-00-00 |
from US $3.68 |
||
|
27
|
27
90501-351F6-00 Spring, Compression |
90501-351F6-00 |
from US $13.80 |
||
|
28
|
28
3VL-E7604-00-00 Seat Spring Set |
3VL-E7604-00-00 |
from US $16.89 |
||
| replacements | |||||
|
28
|
28
5BR-E7684-10-00 Seat, Secondary Spring |
5BR-E7684-10-00 |
US $20.61 |
||
|
28
|
28
5C2-E7604-00-00
Seat Spring Set
|
5C2-E7604-00-00 |
— | ||
|
29
|
29
3VL-E7654-00-00
Spacer 1
|
3VL-E7654-00-00 |
— | ||
