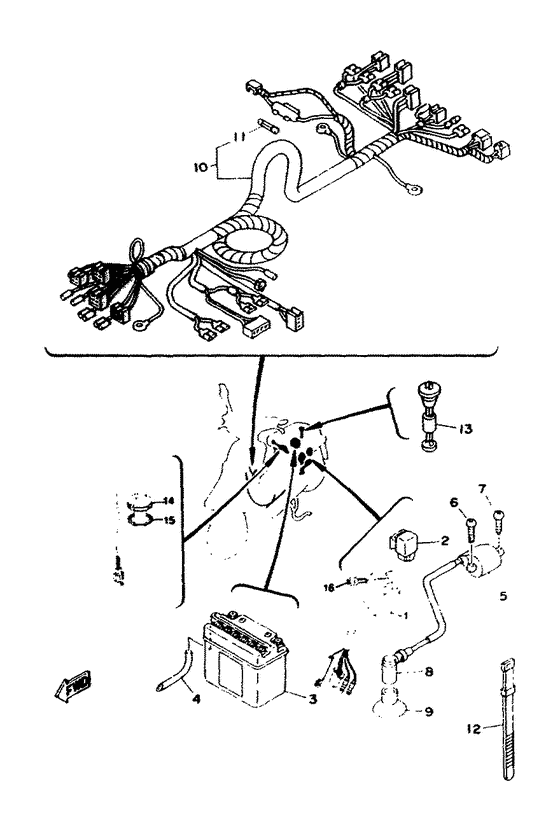

Electrical2 Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
02
|
02
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
03
|
03
4CU-H2110-00-00
Cb4Lb Gs Battery
(fiamm) |
4CU-H2110-00-00 |
— | ||
| replacements | |||||
|
03
|
03
CB4-LB000-00-00
12N5.5-3B GS BATTER
(fiamm) |
CB4-LB000-00-00 |
— | ||
|
03
|
03
9079R-24278-00
Battery (Yb4L-B)
(fiamm) |
9079R-24278-00 |
— | ||
|
03
|
03
YB4-LB000-00-00
Bat Yb4L-B Yu
(fiamm) |
YB4-LB000-00-00 |
— | ||
|
03
|
03
4SB-H2110-00-00
Cb4Lb Gs Battery
(yuasa) |
4SB-H2110-00-00 |
— | ||
| replacements | |||||
|
03
|
03
CB4-LB000-00-00
12N5.5-3B GS BATTER
(yuasa) |
CB4-LB000-00-00 |
— | ||
|
03
|
03
9079R-24278-00
Battery (Yb4L-B)
(yuasa) |
9079R-24278-00 |
— | ||
|
03
|
03
38E-82110-02-00
Battery Gm4-3B (Gs)
(yuasa) |
38E-82110-02-00 |
— | ||
|
03
|
03
YB4-LB000-00-00
Bat Yb4L-B Yu
(yuasa) |
YB4-LB000-00-00 |
— | ||
|
04
|
04
90445-083F2-00 Hose (L620) |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
04
|
04
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
05
|
05
3KJ-82310-01-00 Ignition Coil Assy |
3KJ-82310-01-00 |
from US $59.27 |
||
| replacements | |||||
|
05
|
05
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
05
|
05
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
05
|
05
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
06
|
06
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
07
|
07
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
08
|
08
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
09
|
09
3KJ-82372-00-00 Seal, Plug Cap |
3KJ-82372-00-00 |
from US $4.11 |
||
|
10
|
10
4SB-H2590-00-00
Wire Harness Assy
|
4SB-H2590-00-00 |
— | ||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
4KH-H3936-00-00 Band, Switch Cord |
4KH-H3936-00-00 |
from US $3.68 |
||
| replacement | |||||
|
12
|
12
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
13
|
13
4SB-H5720-00-00
Oil Level Gauge Assy
|
4SB-H5720-00-00 |
— | ||
|
14
|
14
4SB-H5752-00-00
Sender Unit Assy, Fuel Meter
|
4SB-H5752-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4SB-H5752-01-00
Sender Unit Assy, Fuel Me
|
4SB-H5752-01-00 |
— | ||
|
15
|
15
4SB-H5753-03-00
Gasket, Sender Unit
|
4SB-H5753-03-00 |
— | ||
|
16
|
16
4UP-F1532-00-00
Bolt 2
|
4UP-F1532-00-00 |
— | ||
| replacement | |||||
|
16
|
16
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
