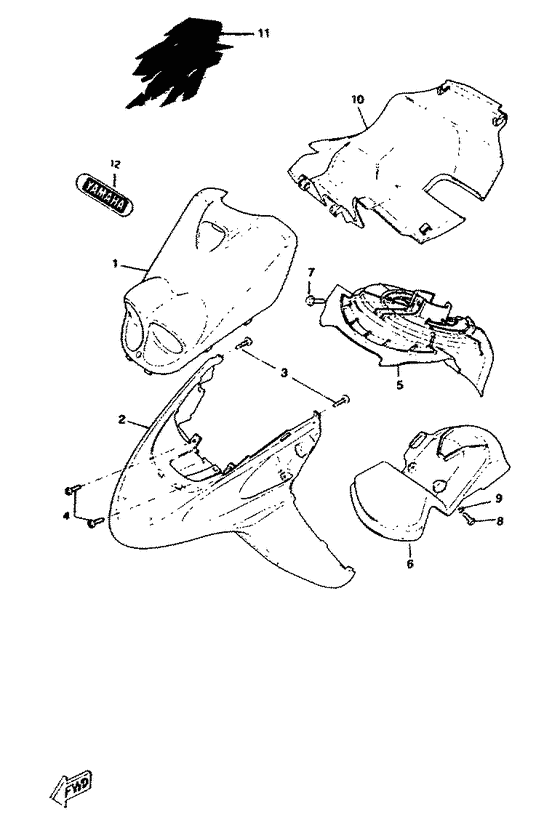

Fender Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F1511-00-4B
Fender, Front
(black 2) |
4SB-F1511-00-4B |
— | ||
|
01
|
01
4SB-F1511-00-P1
Fender, Front
(vivid red solid a) |
4SB-F1511-00-P1 |
— | ||
|
01
|
01
4SB-F1511-00-P3
Fender, Front
(dark cyan metallic 3) |
4SB-F1511-00-P3 |
— | ||
|
02
|
02
4SB-F1519-00-00
Mole, Fender
|
4SB-F1519-00-00 |
— | ||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
04
|
04
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.66 |
||
|
05
|
05
4SB-F1552-00-00
Fender, Inner
(black) |
4SB-F1552-00-00 |
— | ||
| replacement | |||||
|
05
|
05
4SB-F1552-01-00
Fender, Inner
(black) |
4SB-F1552-01-00 |
— | ||
|
06
|
06
4SB-F1553-00-00
Fender, Inner 2
(black) |
4SB-F1553-00-00 |
— | ||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
08
|
08
90119-06052-00 Bolt, With Washer |
90119-06052-00 |
from US $1.35 |
||
| replacement | |||||
|
08
|
08
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
4SB-F1629-00-00
Guard, Mud
(black) |
4SB-F1629-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4SB-F1629-02-00
Guard,mud(Pp(Black)
(black) |
4SB-F1629-02-00 |
— | ||
|
11
|
11
4SB-F1579-00-00
Graphic 2
|
4SB-F1579-00-00 |
— | ||
|
11
|
11
4SB-F1579-10-00
Graphic 2
|
4SB-F1579-10-00 |
— | ||
|
12
|
12
4UP-F152A-00-00 Emblem 2 |
4UP-F152A-00-00 |
US $30.31 |
||
